Submersible Solar Pumps
Submersible solar pumps use solar energy to pump and transport water. It is a pump that is immersed in water. It is the most attractive water supply method in the sun-rich regions of the world today, especially in remote areas that lack electricity and electricity. It is mainly used for domestic water supply, agricultural irrigation, garden watering and so on.
Most popular related searches
submersible solar pump
solar pump
level probe sensor
water level probe
water level control
water level controller
domestic water supply
solar submersible pump
water supply
submersible pump
- Permanent magnet DC brushless synchronous motor: The efficiency is improved by 15%-20%; Save energy; Reduce the consumption of solar panels.

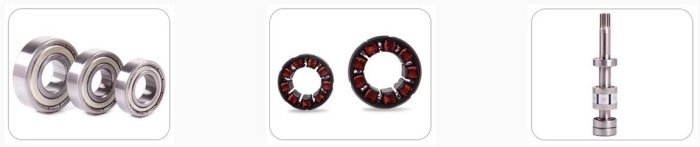

- 304 S/S pump shaft.
- Brass outlet/connector/ oil cylinder.
- Japanese NSK bearing, the working life will be 3 to 5 times prolonged.
- Double bearing motor base can work under more axial pressure
- Alloy mechanical seal: Longer working life and high reliability.
- Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
- Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically start working 30 minutes later.
- 1. Waterproof grade: IP65
- 2. VOC range:
- 24/36V controller: 18V-50V48V
- controller: 30V-96V72V
- controller: 50V-150V96V
- controller: 60V-180V110V
- controller: 60V-180V
- 3. Ambient temperature:-15℃~60℃
- 4. Max. input current:15A
- 5. MPPT function, the solar powerutilization rate is higher.
- 6. Automatic charging function:
- Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- 7. LED displays the power, voltage, current, speed etc working condition.
- 8. Frequency conversion function:
- It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually.
- 9. Automatically start and stop working.
- 10. Water proof and leak-proof: Double seal effect.
- 11. Soft start: No impulse current, protect the pump motor.
- 12. High voltage/Low voltage/Over-current/High temperature protection
- Maximum power point tracking (MPPT), fast response and stable operation.
- Run (under load) protection.
- Maximum current protection of the motor.
- Low frequency protection.
- Dual mode input, compatible with DC and AC power inputs.
- The (power/flow) performance curve calculates the flow output of the pump.
- Fully automatic operation, digital control of data storage and protection functions.
- The LED displays the operation panel and supports remote control.
- Low water level probe sensor and water level control.
- Powerful lightning protection.
- Flood Irrigation
- Fish Farming
- Poultry Farming
- Cattle Farming
- Drip Irrigation
- Drinking & Cooking
- Car Washing
- Swimming Pool
- Garden watering
