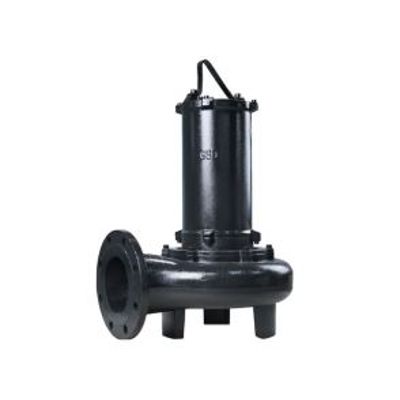

GSD - Model SQW -Submersible Solid Handling Pump for Wastewater Treatment
The SQW Submersible Solid Handling Pump is designed to effectively manage and transport solids in various applications. Constructed from robust materials like HT200, SUS04, and SUS316, it is engineered to ensure durability and efficient performance in harsh environments. This pump is suitable for settings where handling a wide range of solid materials is crucial, such as wastewater treatment, agriculture, and industrial processes. It comes with a complementary Auto-Setter or bending parts for optimized connections and installation. With a minimum order quantity of one set, it is priced between USD 300 to 1,100, making it a competitive option for industrial-grade pumping solutions. Ideal for users requiring a solid handling system with reliable operational efficiency, its design promotes long-lasting and maintenance-friendly usage.
- Minimum order quantity: 1 set
- Price: USD 300 - 1,100.00
- Material: HT200, SUS04, SUS316, etc.
- With corresponding Auto-Setter or bending parts for connection
Motor
Squirrel-cage, induction motors are F class insulation, motor protection grade is IP68.
Impeller
The pump uses CFD technique for design, with wide inlet, which makes the stable flow, easier sewage passage and high efficiency. It adopts rigorous technics so that vibration and noise can be farthest reduced.
Mechnical Seal
The mechanical seals protect the motor from contacting the pumping liquids.Two seals are in series with each other and individually work to provide the motor with a dual protection.
Auto-setter(Options)
To allow pump for wasy installation, maintenance & reparation, as it is no need to empty the tank first.
Leakage Detector(Options)
Built-in leakage detector in the oil chamber can detect leakage from the damage of the mechanical seal.
Heat-protector(Options)
Built-in heat protector in motor, can prevent the motor from burning out, overload & overheating.
- Wastewater lift station
- Municipal wastewater treatment plant
- Building wastewater treatment system
- Hospital, school, community, etc. wastewater treatment system
- Food, paper, mining, textile, leather, chemical industry, etc. Wastewater treatment system
- Water purification system
