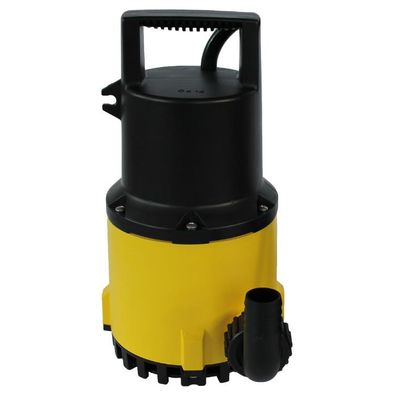

Zehnder - Model ZPK 30 -Submersible Waste Water Pump
FromZehnder Pumps
Submersible waste water pump, made of corrosion- and shock-resistant polypropylene and high-grade stainless steel.
Most popular related searches
water pump
submersible water pump
float switch
windbreak
portable pump
domestic waste
washing system
submersible pump
water pump submersible
domestic water
- motor winding with thermal winding protection
- mechanical seal and additional shaft seal
- horizontal pressure outlet 1 ¼” MPT
- version `A` with mounted float switch
- version `KS` with mounted compact float switch (fits into pipes with an inner diameter larger than 250 mm)
- protection grade IP 68 – fully submersible
- pumping of clear water and waste water from pits, drainage manholes, cellars etc.
- portable pump for emergency drainage
- drainage of domestic waste water without faeces from showers, washing machines, washbasins etc.
- pump with 10 m power cable and plug
- 90° hose connecting bend (ZPK 30: DN 25; ZPK 35 and ZPK 40: DN 32)
- Article number 13011
- Power supply 230 V
- Frequency 50 Hz
- Power P1 300 W
- Power P2 130 W
- Nominal current 1,3 A
- Drive 2800 rpm
- C 5 µF
- Max. temperature 40 (short-term 90) °C
- Max. flow rate 7,0 m³/h
- Head up to 7,5 m
- Free passage 10 mm
- Min. switch-on point 120 mm
- Residual water level 25 mm
- Diameter 150 mm
- P-dimensions (WxHxL) 186 mm x 349 mm x 186 mm
- features without float switch
