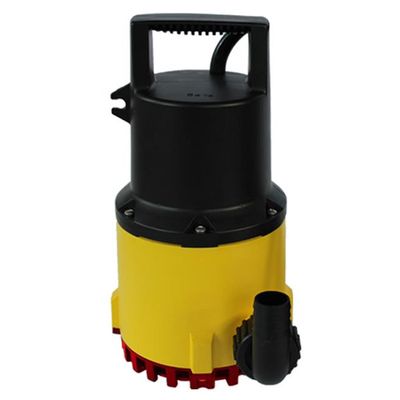

Zehnder - Model S-ZPK 30 -Submersible Waste Water Pump

FromZehnder Pumps

SHARE

Submersible waste water pump for aggressive media without float switch.

Most popular related searches

submersible water pump

water softening system

softening system

water softening

submersible pump

for use behind water softening systems and for calorific value condensate
high-quality, silicon carbide mechanical seal, stainless steel motor housing (1.4404), stainless steelmotor shaft
motor winding with thermal winding protection
mechanical seal and additional shaft seal
horizontal pressure outlet 1 ¼” MPT
version `A` with mounted float switch
version `KS` with mounted compact float switch (fits into pipes with an inner diameter larger than 250 mm)
protection grade IP 68 – fully submersible

drainage of slightly acidic condensate, aggressive or salty media (max. 15% salt content)
lifting of domestic faecal-free waste water (operation temperature 40°C / short-term up to 90°C)

drainage of slightly acidic condensate, aggressive or salty media (max. 15% salt content)
lifting of domestic faecal-free waste water (operation temperature 40°C / short-term up to 90°C)

Article number 13031
Power supply 230 V
Frequency 50 Hz
Power P1 300 W
Power P2 130 W
Nominal current 1,3 A
Drive 2800 rpm
C 5 µF
Max. temperature 40 (short-term 90) °C
Max. flow rate 7,0 m³/h
Head up to 7,5 m
Free passage 10 mm
Min. switch-on point 120 mm
Residual water level 25 mm
Diameter 150 mm
P-dimensions (WxHxL) 186 mm x 349 mm x 186 mm
features without float switch
