OLIJU

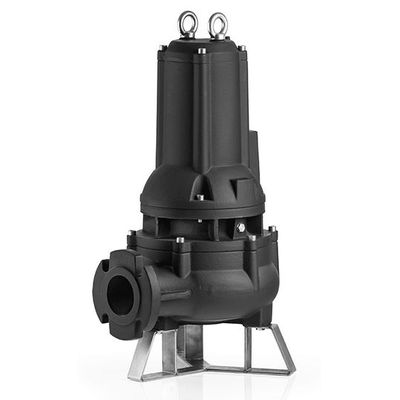

OLIJU - Model 4PSV -Submersible Wastewater Pump
FromOLIJU
4PSV series pumps are suitable for pumping drainage water and waste water. With 80 mm spherical clearance. They are used for various applications in public and private sector, trade and industry.
Most popular related searches
submersible wastewater pump
submersible pump
wastewater pumping
wastewater pump
drainage water
stainless steel pump
mechanical seal pump
submersible electric motor
submersible motor
water containment
Installation
Submersible pumps in close-coupled design for permanent or transportable usage.
Materials
Double seals, lip seals and reinforced SIC-SIC mechanical seal. Motor casing, pump body and open impeller in cast iron, 420 stainless steel shaft
Pumped liquid
Clear water and drainage water, sewage containing soft solids. Max. liquid temperature: 35°C.
Motor
Fully submersible, pressure tight electric motor. Stainless steel motor- and pump housing. Insulation class F. Motor protection IP 68. Thermal sensors imbedded in the motor winding.
Features
- Power cable: 10 m neoprene.
- Immersion depth of 10 m.
- Ideal for installation with guide rail.
