EBARA Pumps Americas Corporation (EPAC)

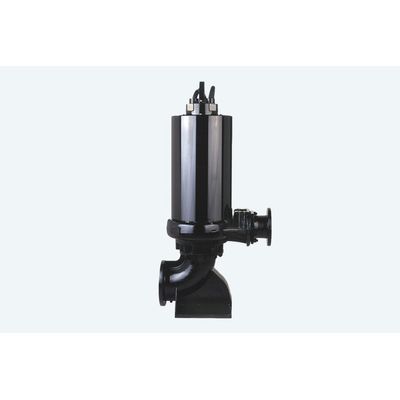

Ebara - Model DDLFU -Submersible Wastewater Sewage Pump
Heavy-duty, high-efficiency, air filled motor – operates cooler with higher efficiencies, resulting in reduced operating costs. Watertight cable entry system – protects against moisture and capillary action; reduces maintenance costs. Self-cooling jacket – eliminates the need for external pumping devices or special heat transfer fluids; offers simplicity and high reliability by effectively dissipating heat in dry pit applications only.
Most popular related searches
municipal water supply
sewage lifting station
sewage lifting
stormwater control
lift station
municipal water
sewage
stormwater
sewage pump
flood control
- 60,000 hour single and double row thrust bearings – long dependable operation, lowers maintenance costs
- High-efficiency impellers – ability to pass large solids with high outputs prevent clogging and handles stringy material better, impellers are optimized for hydraulic coverage lowering operating costs
- Double mechanical seals – operate in an oil bath providing longer service life and lower maintenance costs
- Stainless steel shaft – high tensile strength and corrosion resistance
- Replaceable wear components – maintain working clearances while reducing casing and volute costs
- Discharge Size: 4″ to 12″
- Range of HP: 7 1/2 to 60 HP
- Capacity: 80 to 4732 GPM
- Head: 8 to 254 Ft.
- Max. solid diameter: 3″
- Max. liquid temperature: 104°F (40°C)
- FM explosion proof available
- Industrial
- Municipal
- Water supply
- Wastewater
- Storm water, flood control
- Sewage
- Lift stations
