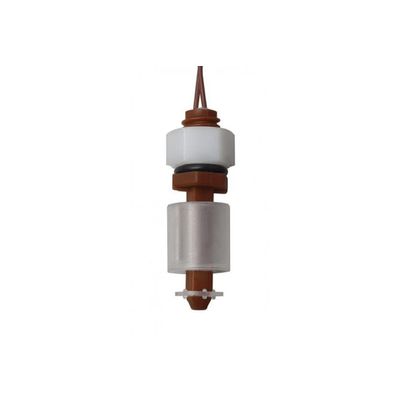

Madison - Model M3326 -Subminiature Float Switch, Polypropylene, 3/8` Bulkhead, Normally Closed
Subminiature float switch, polypropylene, 3/8" bulkhead, normally closed; Detects high/low levels in a container. Polypropylene is a recognized material for food material handling and conveying, and polypropylene-based products are ideal for food applications. Polypropylene is also good for use in agriculture, and for contact with many industrial fluids. (See chemical compatibility chart). Can be used in low temperature food equipment applications (up to 221ËšF, 105ËšC) such as food service steamers and proofers.
Most popular related searches
- Approvals : CE, UL, NSF
- Electrical Ratings : 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A
- Float Diameter : 0.59" OD
- Stem Material : Polypropylene
- Float Material : Polypropylene
- Float SG : 0.60
- Lead Wires : 24", 22 AWG, Teflon Insulated
- Max Pressure : 50 PSI
- Max Temperature : 221˚F (105˚C)
- Mounting : 3/8-16 UNC
- Note : Electrical Switch Ratings are shown for resistive loads as tested by UL at different voltages. See our Electrical Considerations for typical inductive or capacitive load considerations.
- Switch Rating : 15 Watt, SPST
- Type : Subminiature Switches
