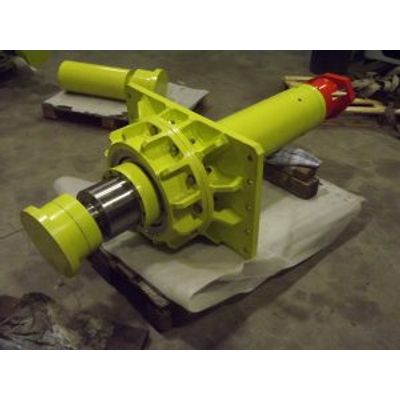

Mekex - Subsea Screw Jack
The subsea screw jacks are used to level a subsea structure (leveling system), in this case the base frame of a subsea PLEM, by a ROV (adapted for deep-water application).
Most popular related searches
- Max Static Compression Load: 50000 Kg
- Max Regolation Load: 5000Kg
- Max Tensile Load: 5000Kg
- Connection: Ball joints onto both ends
- Actuation: by ROV class #5
- Work Cycle Number: <50
- Work Depth: 630m
- Max Stroke: 700mm (±350mm around the intermediate point)
- Inclination field: ± 5°
