- Gravity Wagon Belt Conveyor

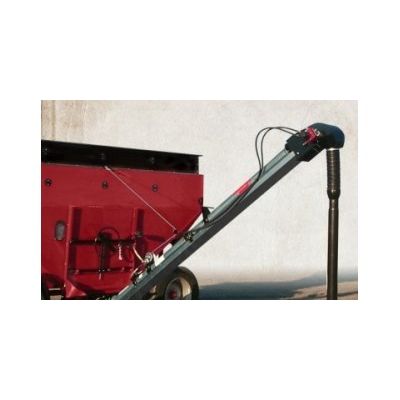

For the ultimate in gentle seed handling to your planter or drill, use a belt conveyor. This belt conveyor lets you use virtually any gravity wagon, meaning cost of ownership is minimal compared to a dedicated seed tender. Cleated belt drastically reduces fallback, a common problem with flat top belts. Shown here with optional three-piece telescoping spout.

Fill a 3-bushel planter box in 12 seconds!

6' x 16' and 6' x 18' Conveyor tubes

875 BPH at 400 FPM belt speed*

*400 FPM is the seed industry recommended maximum belt speed.

Universal hopper (fits most wagons)

Conveyor Tube

6' galvanized welded tube; galvanized wind skirt for belting return


9' cleated PVC belt (Patented); 1' cleats on 6' centers; lagged top pulley

Conveyor Drive

Char-Lynn 6.2 CID hydraulic motor; spring loaded shut-off with remote rope control for start/stop operation from the discharge end

Transfer Hopper

Several sizes to fit many gravity wagons and seed transports; designed for easy installation and removal

Solenoid Valve Control

Provides remote auger control from a 12V plug-in; includes 25' of cable; eliminates the constant rope tension required for auger operation

Power Kit

A handy gas/hydraulic system for operating the conveyor; includes: 8 HP gas engine, 9 GPM pump and 5-gallon reservoir

4' Urethane Spout

Designed for gentle incline-to-discharge transition

Three-Piece Telescoping Spout

Extends to 15-1/2'
