Hansa - Model HCNA-LDS -Suitcase

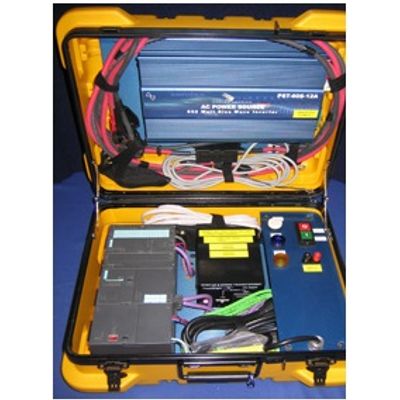

The Suitcase HCNA-LDS is designed to optimize mobility and rapid response to the customer’s request to conduct leak detection testing anywhere in the world. The system to be tested can be pressurized and depressurized by existing equipment (e.g. existing main pumps, truck, bowser, etc.). The separation valves are opened/closed either manually or automatically. One pressure transmitter connection and one leak simulation connection per section to be tested are required.
An existing High Point valve is usually used to connect a 1½” or 2’’ standard coupler with a T-unit, to connect the pressure transmitter and a 3/4“ ball valve for leak simulation. The evaluation unit consists of a notebook and a data interface module. The pressure transmitter is either permanently installed or is part of the evaluation unit and is connected temporarily for the time of testing. This T unit can be permanently installed for ease of subsequent testing depending on the configuration of the fuel system being tested (e.g., at the fuel farm, in an isolation valve pit, etc.)
The Suitcase HCNA-LDS requires a one-time calibration on site and thereafter can be run whenever required (e.g. quarterly, annually, or upon suspicion). This service is especially designed to minimize investment costs and to allow the customer to check their system immediately upon request or on a regular interval.
Additionally, for more complex remote fueling locations, the HCNA-LDS S-Quad is a self-contained portable unit that provides important flexibility by including required equipment to enable efficient testing at multiple locations. Minimal local assistance is required and there is limited operational impact during testing.
- Andersen AFB, Guam
- Chevron Texaco, Cayman Islands
- Eielson AFB, AK
- Elmendorf AFB, AK
- Lihu`e Helicopter Airport, HI
- MCB Futenma / MCAS Hansen & Butler, Japan
- Misawa Air Base, Japan
- NAS Sigonella, Sicily
- Naval Station Rota, Spain
- San Juan International Airport, Puerto Rico
- US Navy EFD, Wake Island
