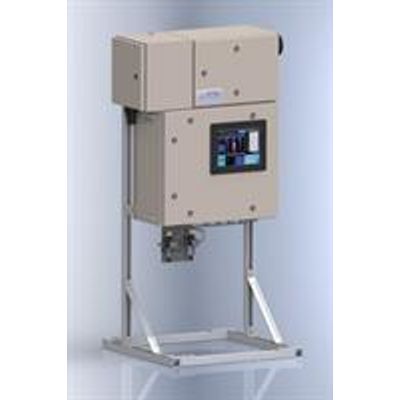

ATOM - Model SGA-1000 -Sulfur in Gas Analyzer for Total Sulfur
ATOM Instrument offers the most versatile Total Sulfur analyzers available. The ATOM SGA-1000 is an online process analyzer utilizing patented Excimer UV Fluorescence (EUVF) technology to measure total sulfur in a variety of refinery process applications.
The SGA-1000 provides complete analysis of all sulfur compounds potentially present in process gas streams and not just a few selected sulfur compounds as with some GC/TDL applications. Calibration and Validation functionality is seamlessly incorporated with associated analyzer software for easy compliance or verification testing.
The SGA-1000 has the fastest analysis time of any commercially available analyzer allowing user-defined, multiple cycle averaging to improve analyzer performance. The analyzer operating software is both intuitive and user-friendly. In addition, the ATOM SGA-1000 only requires bottled air for normal operation and does not require installation in an enclosed shelter.
- Accurate Low Level Sulfur Measurement (<1 ppm)
- Meets ASTM D6667 performance requirements
- Dual Stream Capability
- Measurement range available up to 100%
- Outstanding Repeatability :
- 200ppb SD or ±2% of measured value
- 100ppb SD with 5-min averaging or ±2% of measured value
- High Linearity :
- ±2% of full scale (Dynamic Range Dependent)
