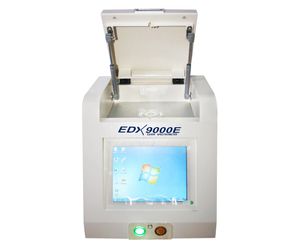

ESI - Model EDX9000E -Sulfur in Oil XRF Analyser
The Sulfur in Oil XRF Analyser EDX9000E Complying with ASTM Method 4294 The Sulfur in Oil XRF Analyser Complying with ASTM Method 4294 Sulfur is a major element of importance because it forms sulfuric acid in the atmosphere when burned and has harmful impact on the human health and on the environment. The EDX-9000E Are the simplest, most accurate, non-destructive and price-performance competitive analyzers that can deliver quickly very accurate and precise measurements of sulfur meeting stringent ASTM method requirements.
EDX9000E can be used to test and monitor quality in the production of oils and fuels. Compliant, repeatable and accurate elemental analysis is a given but additional value is generated in several parts in your refining operation:
- the elemental analysis of crude oil to optimize and adapt refinery processes
- the determination of low levels of chlorine for optimal desalting and corrosion control
- the determination of low levels of S, Ni, V, Ca and Fe to prolong your catalysts` life and improve their performance and the analysis of the sulfur content during fuel production and blending
- Analyses performed by EDX9000E comply with international test methods and regulations, like TIER 3, ISO 13032, ISO 20847, ISO 8754, ASTM D4294, ASTM D4929, JIS K2541-4, IP 336 and IP 496.
The EDX-9000E Are the simplest, most accurate, non-destructive and price-performance competitive analyzers that can deliver quickly very accurate and precise measurements of sulfur meeting stringent ASTM method requirements.
- Low detection limits
- High speed and accuracy
- Intuitive interface
- Autonomous operation
- Compact, doesn’t take much space on a desk or a counter
- Ergonomic design with a large PC ingetraged
- Leakage protection. The movable analyzer stage protects expensive components from the leakage of the investigated petrochemicals
- Fast measurements are achieved by using the latest silicon drift detector technology that produces significantly higher intensities.
- Unique detector electronics enable a linear count rate capacity to high cps throughput and a count rate independent resolution typically better than 125 eV for better separation of analytical lines in the spectrum. This allows the EDX9000E spectrometer to run at full power and therefore realizes a much higher sample throughput compared to traditional EDXRF benchtop instruments.
- Easy Sample prepare and user-friendly operation.
- No gas consumption or vacuum needed

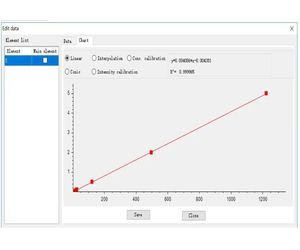

- Factory Calibration included:
- Low sulfur: 10ppm- 100ppm
- High sulfur: 0.01%-5%
- Dimension: 380×372×362mm
- Fast SDD detector resolution proves the most excellent test performance
- Area: 70 mm2
- Energy resolution: 130 eV at Mn Kα
- Count rate: 500 000 cps
- Compliance:
- Conform to test methods and standards such as ASTM D4294, ISO 8754, ISO 20847,
- IP 336.
We offer a full range of technical support to keep you up and running.
Our Service
- Telephone help-desks
- For a fast response to your problem.
- Remote diagnostics
- In-depth support over the internet.
- Preventive maintenance
- Ensures your analyser produces the right result year after year
- Consumables and accessories
- From sample preparation to calibration standards.
