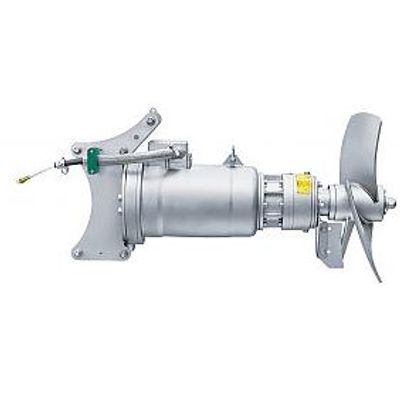

SUMA OPTIMIX - Model 2A -Agitator
Agitator for agressive media and low pH environments. The OPTIMIX 2A is available completely in stainless steel for substrates with low pH-values and operations in extreme aggressive media. This motor is certified for Ex-zone 1 or Ex-zone 2.
- Propeller in ss304, optional hardened ss304 or ss316
- Mechanical SiC/SiC seal
- 3 separated oil chambers for motor, gear and bearing housing
- Longlife-oil within the gear and bearing housing
- Guide mast suspension with 4 rollers
- Galvanically isolated to the mast and ss316-rope
- Biomass resistant jacket for electric cable
- Accessory: POM protection to minimize abrasion
Customized solutions:
The SUMA modular design philosophy allows individualized combinations of motor performances, gears, propeller and mast sizes.
Galvanical isolation:
The SUMA-guide mast support with 4 rollers and POM-slide rails guarantees a perfect sliding on the mast and a galvanical isolation between the mast and the agitator.
Perfect stirring result:
The 3 separated oil chambers for motor, gear and bearing housing ensure a proper stirring. Longlife oil with longer oil changing intervals are used in transmission and the bearing. A mechanical SiC/SiC seal serves as separation to the bearing housing.
Control box:
Available are delta-star-operating-switches for manually operation or time-controlled SUMA-soft start controls. All agitators can be managed by an external drive controller.
