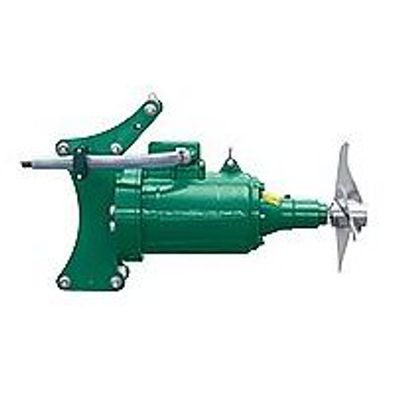

SUMA OPTIMIX - Model 2G 3 / 4 kW -Agitator
Agitator for smaller tanks with low dry matter content. The OPTIMIX 2G with 3.0 or 4.0 kW is especially designed for smaller containers or tanks and substrates with a low dry matter content of up to 8%.
- Propeller in hardened steel,galvanized, ss304 or ss316
- Mechanical seal SiC/SiC
- 2 separated oil chambers for motor and bearing housing
- Longlife-oil within the bearing housing
- Guide mast support with 4 rollers for 80 x 80 / 100 x 100 / 120 x 120 mm mast
- Galvanically isolated to the mast through ss316-rope
- ated power3 kW4 kW
- Rated voltage (400 V)7.88.6
- Propeller speed (50 Hz)710950
- Thermal protectionPTC 130°CPTC 130°C
- Ex-Zone22
Galvanical isolation:
The SUMA-guide mast support with 4 rollers and POM-slide rails guarantees a perfect sliding on the mast and furthermore a galvanical isolation between the mast and the agitator.
Optimum stirring result:
The 2 separated oil chambers for motor bearing housing ensure a proper stirring. Longlife oil with a longer oil changing interval is used for the bearing housing. The sealing is made through the mechanical seal SiC/SiC within the bearing housing. For the motor turbine oil is used for cooling.
Control box:
There are delta-star-operating-switches for a manually operation or time-controlled SUMA-soft start control available. All agitators can be managed over an external frequency converter.
