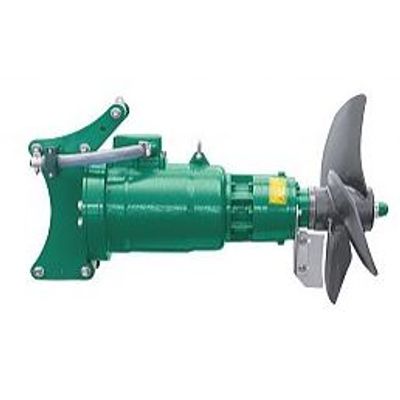

SUMA OPTIMIX - Model 2G -Fluidically Optimized Submersible Motor
The fluidically optimized submersible motor Optimix 2G is available with 4 / 9 and 15 kW and different rotational speed of the propeller. Because of the unique SUMA modular design differend motor performances, gears, propeller and mast sizes can be combined for an appropriate agitator for the customer.
- Propeller in hardened steel, optional galvanized or ss304
- Mechanical seal of SiC/SiC
- 3 seperated oil chambers for motor, gear and bearing housing
- Longlife-oil within the gear and bearing housing
- Guide mast support with 4 rollers for 80 x 80 / 100 x 100 / 120 x120 / 150 x 150 mm masts
- Galvanically isolated to the mast through ss316-rope (V4A)
- The cable is restistant against biomass
- Accessory: POM protection to minimize abrasion
- 2G 40-180 4kW 180 rpm
- 2G 40-250 4kW 250 rpm
- 2G 90-280 9kW 280 rpm
- 2G 90-380 9kW 380 rpm
- 2G 150-380 15kW 380 rpm
Galvanical isolation:
The SUMA-guide mast support with 4 rollers and POM-slide rails guarantee a perfect sliding on the mast and furthermore a galvanical isolation between the mast and the agitator.
Optimum stirring result:
The 3 seperated oil chambers for motor, gear and bearing housing ensure a proper stirring. Longlife oil with a longer oil changing interval is used for the gear and the bearing housing. The sealing is made through the mechanical seal SiC/SiC within the bearing housing.
Control box:
There are delta-star-operating-switches for a manually operation or time-controlled SUMA-soft start control available. All agitators can be managed over an external frequency converter.
