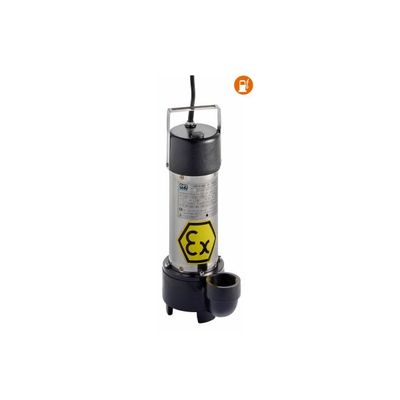

OFT - Model ID Derby EX -Sump Pump for Hydrocarbons
Sump pump for collecting leachate in storage tanks, pumping of industrial waste water from wells or collecting resevoirs, removal of condensate, emptying of fuel sumps in gas stations, extraction of liquids contaminated by hydrocarbons. The ATEX explosion proof pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres and hazardous areas according to the marking explained in the technical details.
Most popular related searches
sump pump
electric submersible pump
explosion proof pump
industrial wastewater
electric pump
submersible sump pump
submersible sump pump
asynchronous motor
hazardous area
industrial waste
- Open impeller in cast iron to avoid obstruction from mud and other suspended small solids particles.
- Cast iron parts with galvanic treatment to increase its resistance.
- Electric pumps produced with 5 m of ID 4G1,5 electric cable included.
- Temperature of pumped liquid: max +40 °C.
- Special and balanced mechanical seal, particularly robust and reliable, with high resistance to wear and chemical aggression.
- 2 poles asynchronous motor, 50 Hz, 2850 rpm.
- Class F insulation.
- IP68 protection.
- Working voltage: single-phase 230 V, three-phase 400 V.
- Oil filled electric motor.
