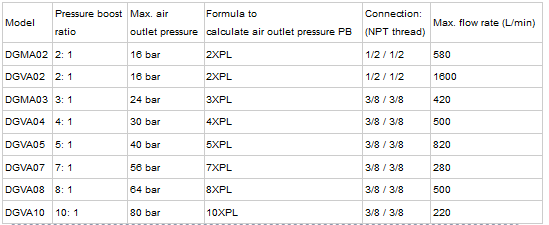

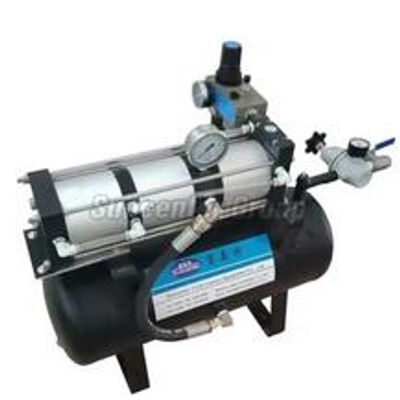

Suncenter - Model DG -Air Pressure Booster Pump
Economical and compact source of amplified air or nitrogen for high pressure industrial applications.
Suncenter air pressure amplifiers offer the most comprehensive operating range in the industry, combining simple operating principles with robust construction for the most demanding industrial applications. Suncenter air amplifiers are capable of producing pressure outputs up to 5000 psi (345 bar), are compact, require no electrical or mechanical drive connections, are powered by the same air they amplify, and can be installed in any location.
Air Pressure Booster Systems - How Does a High Pressure Booster Work?
Compressed air is an essential requirement for many industrial processes such as sandblasting, pressure testing, and more. Typically, pressurized air is provided by standard air compressors, such as rotary screw, rotary vane, and reciprocating piston. However, for high power applications, the air pressure from these systems is often insufficient to perform a given process.
Therefore, plants may need to increase the air pressure from the primary feed. Special processes in industrial plants require very high pressure oil-free or lubricated air.
The use of booster compressors can easily and efficiently generate high-pressure compressed air. But what are they?
This article will discuss what booster compressors are, how they work, and common industrial applications.
What is a booster compressor?
A booster system is a device used to increase or amplify the air pressure from an existing compression system by passing it through additional compression stages. Booster air compressors can increase existing air pressure from 80 – 150 psig to 2000 psig.
Using a compressed air booster is one of the most cost-effective ways to obtain the higher process gas pressures required by industrial plants.
Working principle of air pressure booster
A booster air compressor or compressed air pressure amplifier works on the simple principle that in a closed system (not a vacuum), the pressure increases as the volume decreases. The air booster compression system includes a receiving tank, piping and a discharge tank.
The receiving tank has an inlet for receiving compressed process air from the main feed and directing it through several compression stages to further increase the pressure. Additionally, the receiver tank serves as limited storage capacity when the system is not actively delivering compressed air.
After a series of compression stages, the pressurized air is piped into a discharge tank, which contains an outlet to supply the gas to the site.
- Suncenter`s air pressure amplifiers are driven by the same air they amplify, so they have a long life and are easy to maintain.
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Multiple models, controls and options
- Eliminates oily emissions by eliminating the need for air line lubrication
- Infinitely variable outlet pressure and flow capabilities
- Extensive standard and custom systems
- Control the maximum pressure with an inexpensive pneumatic pressure regulator
- Air boosters are a simple and economical way to amplify air or nitrogen to the high pressures required for industrial applications.
- Increased force on grips and presses
- Increase part ejection, forming and cylinder speed
- Die pad
- PET blow molding
- air drill
- air tools
- air starter
- Brakes, Clutches and Housings
- filter bag emptying
- pressure test
- valve actuator
- Charge the breathing tank
- Remove bearings and wheels
