Sunda - Model SP Series -Heat Pipe Hot Water Heaters

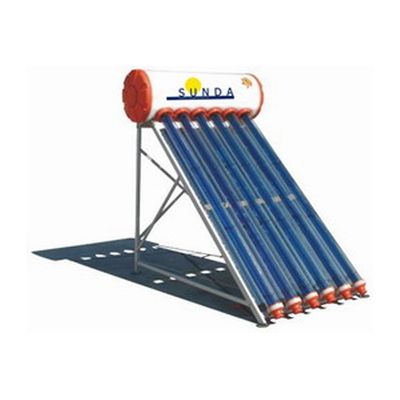

SP series Heat Pipe Hot Water Heaters consist of SEIDO1 with two sides coating - heat pipe vauum tube collector, steel water tank with enamel coating and aluminum alloy or angle steel with spurted plastic coating support frame. The condenser of the heat pipe tube is directly inserted into the non-corroding copper protection tube within the water tank. The heat pipe vacuum tubes collect heat with high efficiency transforming over 92% of the incoming solar irradiation into heat. The condenser transfers the generated heat to the manifold where the water is heated. Thereafter, the hot water is circulating in the system until the system attains the required temperature. The heat transfer liquid of the heat circuit does not flow through the collector itself. This allows a very simple installation and guarantees an exceptionally trouble-free operation. The operation of the system will not be interrupted even if one of the collector tubes should get damaged.
SP series Heat Pipe Hot Water Heaters consist of SEIDO1 with two sides coating - heat pipe vauum tube collector, steel water tank with enamel coating and aluminum alloy or angle steel with spurted plastic coating support frame. The condenser of the heat pipe tube is directly inserted into the non-corroding copper protection tube within the water tank. The heat pipe vacuum tubes collect heat with high efficiency transforming over 92% of the incoming solar irradiation into heat. The condenser transfers the generated heat to the manifold where the water is heated. Thereafter, the hot water is circulating in the system until the system attains the required temperature.
The heat transfer liquid of the heat circuit does not flow through the collector itself. This allows a very simple installation and guarantees an exceptionally trouble-free operation. The operation of the system will not be interrupted even if one of the collector tubes should get damaged.
- Pressurized tank for closed circuit system
- Hot water temperature of 40-80°C
- No mixing of hot water and cold water layers
- Enameled and acid-proof steel tank with high chemical stability preventing corrosion
- Metal sealing ring with no-ageing feature
- Maintenance-free
- Employment of gas protection welding ensures high durability of welded joints
- Little installation space required
- Series connections for larger projects possible
- Durability
- Antifreeze
- Longevity
- Aesthetical design
- Aluminium profile support frame for easy installation
- Hot water provision all year round
