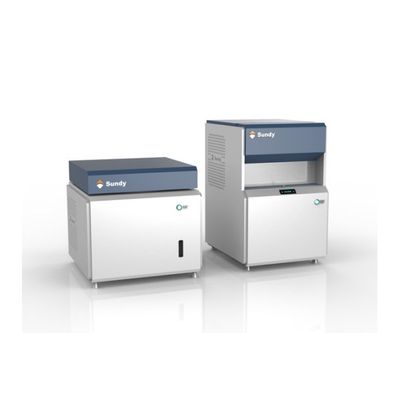

Sundy - Model SDTGA6000 -Thermogravimetric Analyzer (Proximate Analyzer)

FromHunan Sundy Science and Technology Co.,Ltd

SHARE

SDTGA6000 can be used to determine the moisture, ash and volatile matter as well as calculation of fixed carbon and calorific value in coal, coke, calcined petrol coke and other solid biomass fuel. Dual Furnaces,stable performance, accurate test result. 19 samples+1 blank sample for moisture & ash; 25 samples+1 blank sample for volatile matter.

Most popular related searches

thermogravimetric analyzer

temperature calibrator

thermogravimetric

digital temperature controller

calibration standard

moisture analysis

moisture analyzer

Highlights:

Dual furnaces structure, the system consists of two parts, one for moisture and ash analysis, other for volatile matter analysis.
For moisture and ash analysis, 19 samples can be loaded once + 1 blank sample position;
For volatile matter analysis, vertical furnace structure is adopted with 26 positions. Upper part for high temperature volatile matter test while lower part for low temperature cooling and weighing, makes the test result more accurate and test efficiency greatly improved.
Flexible software design, test procedure, analysis time, temperature etc. can be customized;
Unique sample weighing mode, single sample weighing and batch sample weighing are both available, makes the operation convenient.
After finishing the moisture and ash test, furnace cover will be opened automatically for furnace cooling down, thus to shorten the waiting time for next batch of test, makes the operation safe and efficient;
LED displays on both furnaces to show real-time balance weight data, it makes the sample weighing more convenient.
Automatic temperature calibration function is available.
Unique design to ensure the stability of heating element.
High Stability and Reliability.
Patented technology of heat-resistant to ensure stability and reliability.
Built-in balance ensures unbeatable accuracy, comply with thermogravimetric method.
Using blank crucible to calibrate the influence of the thermal buoyancy.

Test index : Moisture, ash ,volatile matter and LOI
Continuous test in batches : Yes
Standards : ISO 17246, ISO 18123/18122/18134, ISO 11722, ISO 1171,ISO 562,ASTM D3173/D3174/D3175/D7582, GB/T 30732, GB/T 212
Precision : 0.02% RSD
Furnace : Dual furnaces, one for moisture and ash, one for volatile matter
Furnace temperature : Room temperature~1000?
Temperature control precision : ±2?
Temperature resolution : 0.1?
Reproducibility : Ash: 0.30% (<15.00%); 0.50% (15.00~30.00%); 0.70% (>30.00%)Volatile matter: 0.50% (<20.00%); 1.00% (20.00~40.00%); 1.50% (>40.00%)
Cooling time required for batches of test : No
Furnace Cooling (forced air/N2) : 950 to 500°C<30 min
Balance Resolution : 0.0001g
Sample introduction and taking : Automatic
Max. Samples :
19 samples + 1 blank sample position (Moisture & Ash)
25 samples + 1 blank sample position (Volatile matter)
Quantity of sample / test time: : Full indexes for 19 samples< 120 min (Quick method)
Sample weight : 0.5 up to 5g
Max. power : 4kW for moisture/ash testing; 2.5kW for volatile matter testing
Interface: : RS232
Furnace Heating : Resistance Wound
Temperature Calibration : Standard thermocouple
Temp. control precision : ±2? (moisture) ±5? (ash, volatile matter)
Gas Flow Rate : GB:Moisture:Nitrogen,30~60 times/h Ash:Air 60~120 times/h ASTM:Moisture:Nitrogen or Air 2~4(Furnace Volume /min)volatile matter:Nitrogen 2~4(Furnace Volume /min)
Power requirement : AC 220 V(±10%),50 / 60Hz
Gas requirement : Nitrogen/Oxygen/Compressed Air
Gas Pressure : Air 5 to 6 bar (75 to 90 psi)
Minimum Gas Purity : Air/Nitrogen/Oxygen 99.5%; dry, oil-free
Sample weighing : Under normal temp.
Test Temperature : Moisture 105?,Ash 815?,Volatile matter 920?~950? Can be customized
Humidity : <80%
Dimensions : moisture& ash analyzer: 550*590*530mm volatile matter analyzer: 550*650*815mm
Weight : moisture& ash analyzer: 70kg volatile matter analyzer: 95kg
Operational Control : Windows®-based software on external PC/Windows7/ WindowsXP
Advance Calculation : Yes
Analysis Report : Yes
Statistics Report : Yes
System Monitor : Yes
