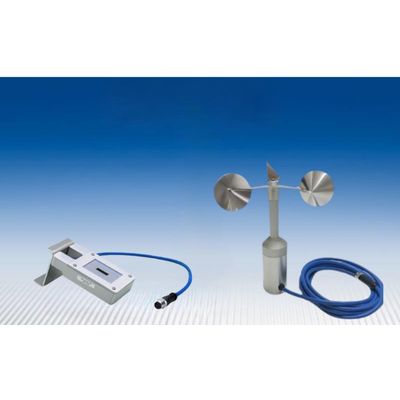

Sunmeter - Model Pro Wind -Irradiance, Temperature and Wind Speed Sensor
SUNMETER PRO WIND is a high performance irradiance, temperature and wind speed Sensor. It is based on Sunmeter PRO and also gives wind readings thanks to a direct connection to a pulse output anemometer via RS485 Modbus.
A 3-in-1 irradiance, temperature and wind speed sensor
Thanks to its firmware and hardware implementations, SUNMETER PRO WIND measures the irradiance solar, temperature and wind speed through a direct connection to a PT100 and a pulse anemometer.
The anemometer can be connected thanks to a 3-way IP67 connector. With a single device it’s possible to reduce wiring on site and ensure the measurement of temperature and wind speed, reading them in sequence through an RS485 Modbus.
Note:the terms irradiance sensor, photovoltaic pyranometer, reference cell and solarimeter are interchangeable. On this site we will use photovoltaic pyranometer. To learn more click here.
- Monocrystalline silicon cell
- Inbuilt TZOS® technology for measurement
- IEC 60904-2 compliant, RS485 standard Modbus RTU for reliable signals up to 500m from the datalogger
- IEC EN 61724-1 compliant (standard for PV Monitoring Sistems)
- Uses temperature compensation for more accurate reading.
- Performance decline of less than 1.5% per year.
- Gives both analog and digital output, compatible with most of data-loggers.
- Higher weather resistance.
- IEC EN 61215 par.10,11,12 compliant (product aging).
- Fixing brackets for easy installation.
- High calibration of temperature data for an error less than 1%
- FREE 12 month recalibration service included.
- Directly replaces your Sunmeter without any modification to the monitoring system
- All Sunmeters are calibrated with our Primary Reference cell, itself calibrated periodically by the Dakks accredited ISFH Institute.
NAME: Sunmeter Pro Wind
- PRODUCT: solar irradiance sensor with monocrystalline silicon cell (photovoltaic pyranometer)
- REFERENCE STANDARDS: IEC 60904-2;IEC 60904-4;IEC 60904-10
- OUTPUT: Digital
- Calibration: Irradiance: by working references calibrated by the Dakks accredited ISFH Institute.
- Wind: speed constant regulated by anemometer constant
- Input range: Irradiance:
- 0 ÷ 1500 W/m2 (IEC EN 61724-1 compliant)
- Spectral range: 0,3 μm ÷ 1,1 μm
- Temperature: -30 ÷ +90 °C
- Wind: 0÷120 Km/h (max 2 imp. round)
- Output: Digital: RS485 standard Modbus RTU (see IEC 60904-2)
- Output precision:
- Irradiance: ≤±2% (1).
- Temperature compensated
- Temperature: <±0.5°C
- Wind: Depends on the anemometer used
- Type of sensor: Photovoltaic pyranometer
- Supply: 9 ÷ 30 Vdc protected from inverse polarity and short circuiting.
- Encapsulation: Transparent UV resistant Resin (see IEC 60904-2)
- Wire: 50cm UV resistant cable with male connector
- Connectors: With 3-way connector for
- the anemometer inpu
- Dimensions: 114x70x22mm without the fixing clamp
- IP code: IP 65
(1) Recalibration recommended after the first 18 months, then after 3 years.
- Producer: Datalogger / Inverter model
- Huawei: SmartLogger 1000/2000/3000 (Table 8.2 of Huawei SmartLogger3000 User Manual)*
- Fractalgarden: ErmesLog
- GreenPowerMonitor: GPM Datalogger
- Higeco: GWC Datalogger
- GH Solutions:
- M-501
- M-502
- SMA: Data Manager M
- Growatt: ShineMaster Datalogger
- Kaco: Kaco Inverter
- Sungrow: SungroW Datalogger
- GoodWe: EZlogger
* Configuration file available on request
