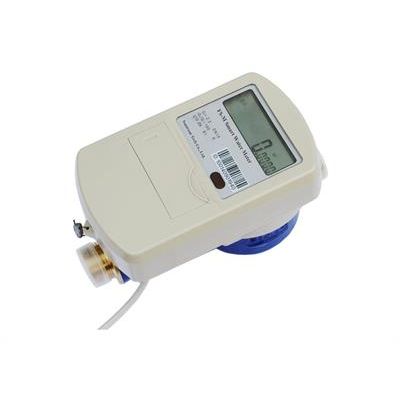

SUNTRONT - Model M-Bus -Remote Meter-Reading Water Meter

The FS-Z M-BUS water meter system consists of M-BUS water meter, collector, concentrator and management software.

1. 1. Bottom layer communication: M-BUS collector and measurement meter transmit data by M-BUS line with 4 channels, and can connect the meter according to any topological structure. Build in backup battery, could works for 48 hours normally, and the data can be saved for 10 years if power is cut off.
2. 2. Middle layer communication: Middle layer communication means the communication between the concentrator and collector. This communication is by wireless RF way, no need of communication line. The wireless communication distance between the concentrator and collector can be about 3km at wide open area.
3. 3. Upper layer communication: Communication methods indicate below can be selected between concentrator and management center.
• GPRS Communication Mode
• Telephone Line Communication Mode
• RS232 Communication Mode
• Ethernet Communication Mode

1. Totally sealed design, waterproof.
2. Automatically memorize the wheel code position and no need initiation.
3. Avoid external strong magnetic attacking, high performance of anti-interference.
4. Effectively solve the phenomenon of reversing and hammering.
5. Adopt M-BUS communication interface, with long distance transmission.
6. No need power supply for daily work.
7. With remote valve control function that can stop water supply remotely.

1. Before install the water meters, please read and record the meter’s address and match it with the user. The meter address is a printed number on the meter. For example, the printed number on the meter is “101011293058”, and then the meter address is “101011293058”.
2. The installation of water meter shall meet with the installation requirement of GB/T778.2.
3. The caliber of water meter shall be based on the size of the pipeline and the usual used water flow is no more than common flow of the water meter; and the installation location shall be avoided insolation, flooding, freezing and pollution, and convenient for installation, removing and reading data.
4. The water meter shall be installed horizontally (display surface is upward).
5. The sands and stones and other sundries in the pipelines shall be cleared.
6. The arrow on the water meter should be the same as the water flow in the pipeline.
7. If the water meter is installed on the inlet of the boiler, shall install check valve on the outlet of water to prevent the return current of hot water and steam from damaging the water meter.
8. It shouldn’t use too much force when connect the water meter and pipeline, in case of damaging the water meter. First, put the joint into the union nut, then, reverse the connector nut to install the water meter on the pipeline, and keep the smart meter horizontally. Note: the smart water meter and joint should not be bent forcedly.
