SUNTRONT - Smart Camera Water Meters
From Smart Water Meter

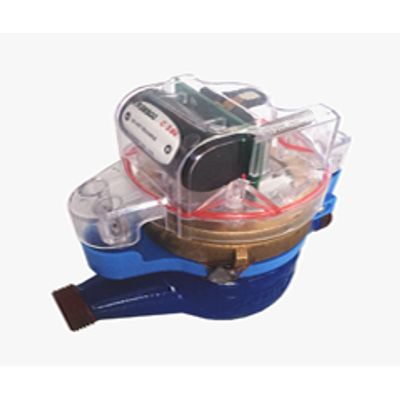

Smart eye terminal (the terminal) is a kind of device that used to upgrade mechanical water meter to remote meter equipment by taking picture and image recognition.
How to use
The terminal is installed on the mechanical water meter to take the photo of the water meter reading by the build-in camera firstly, and then the image will be digitized into cumulative water amount and transferred through the wireless data transmission module by wireless channel.
The terminal can be composed to AMR meter reading system with wireless collector device and management software. The terminal can take photo of accumulative meter reading timely and upload information. The management staff can check and inquiry the accumulative amount and real-time query of copy image and the accumulative amount of water meter through the management software.
Functions
The terminal is installed on the mechanical water meter to take the photo of the water meter reading by the build-in camera firstly, and then the image will be digitized into cumulative water amount and transferred through the wireless data transmission module by wireless channel.
Technical Parameters
- Power Supply : 3.6V Lithium Battery Pack
- Static Working Current : ≤20uA
- Remote Reading Resolution : 1 m³
- Communication Protocol : CJ/T 188-2004
- Baud Rate : 3 kbps
- Radio Frequency : 470 MHz
- Communication Distance : ≥1000 m (Open Field)
Installation
- Fix the terminal’s trestle under the grass cap of water meter.
- Put the waterproof gasket on the base meter.
- Press the terminal on the waterproof gasket, and aim the camera at the direction of dial wheel.
- Put two gaskets on the fixed trestle, and fix the terminal on the trestle by screw.
- Install tamper proof cap.
Note: Please confirm the dial wheel and glass are cleaned firstly, to guarantee the accuracy of terminal.
