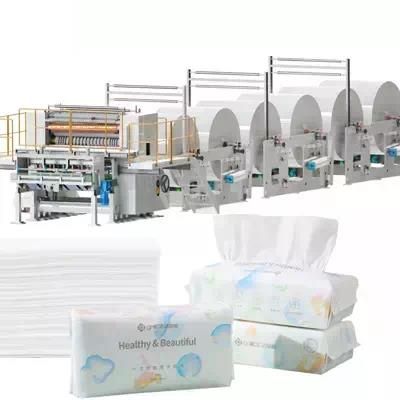

Suny - Model V Type -Automatic Cotton Tissue Making Machine

An automatic cotton tissue making machine is a specialized piece of equipment designed to produce cotton tissues or cotton pads. These machines are commonly used in industries such as cosmetics, skincare, and medical fields.

The maximum speed of the whole machine is 120m/min.Stable running speed about 60-100 m/min, *according to the raw materials. Two or four sets of coiling racks for optional (cost effective and efficiently).Fully automatic production line, so as to eliminate the pollution of paper sources and truly meet hygiene standards.

Equipment Structure

Equipment performance description this facial tissue machine adopts large screen true color man-machine interface operation, PLC programming control, Chinese and English one-button switching independent language environment operation;The automatic stacking system adopts "Siemens/ Mitsubishi" full servo drive control to ensure accurate stacking and stable stacking speed of 6~10 lines per minute;

• Designing Speed: ≤150 m/min
• Number of folds: ≤12 fold/min
• Raw tissue width: ≤1500 mm
• Raw tissue diameter: 1500 mm
• Folding type: continuous operation, wind suction folding
• Breaking Tissue Method: Helicalknife fixed tissue breaking
• Automatic stacking system: The servo motor is used for independent control torealize automatic stacking function
• Autoamtic split stack location tracking: Adopt high precision servo encoder
• Broken tissue detection: with broken towel detection system, the machine stopswhen broken paperoccurs, reducing waste of raw paper
• Photoeletric  detection system: Photoelectric detection is installed on the conveying rack to ensure no collision between semi-finished products
