Abesco - Model S2 -Super Compact Pipe Collars

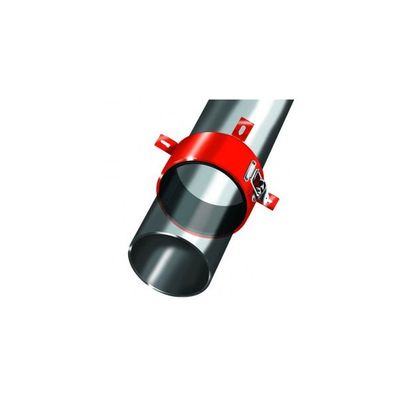

Abesco Pipe Collars are designed to prevent the spread of fire from one compartment to another where plastic pipes penetrate separating wails and floors, and provide up to 4 hours fire resistance. Abesco Pipe Collars consist of a split hinged powder coated steel shell, which contains the heat reactive intumescent material. The unit is held closed around the pipe by a toggle and latch for ease of closure by the installer.
- Certification for a wide range of plastic pipes including PVCU, HDPE, MDPE, PP, ABS.
- Available in the widest range of sizes for standard and non-standard pipe diameters
- Tested for use in plasterboard partitions and timber floors.
- Easy to install.
- Unaffected by moisture or atmospheric Carbon Dioxide
Abesco Pipe Collars are suitable for use in any building which has plastic pipes penetrating fire rated compartment walls and floors.
Typical types of buildings where Pipe Collars are commonly used are:
Flats and Apartment Blocks, Hotels, Hostels, Halls of Residence, Prisons, Ogice Blocks, Hospitals, Airports, Retail Centres, etc.
Abesco Pipe Collars can be used in walls or floors.
When exposed to the heat of a fire, the intumescent material contained within the Pipe Collar expands and exerts pressure on the melting plastic pipe, causing the opening to be closed off and thus preventing the spread of fire from one compartment to another.
Abesco Pipe Collars can be manufactured to meet project specific requirements where standard production specifications may not fulfil client needs. For example, size and fixing variations can be accommodated, manufacture in stainless steel or zinc plated steel for more aggressive environments is also available.
Project specific fire testing can be arranged for particular site configurations.
