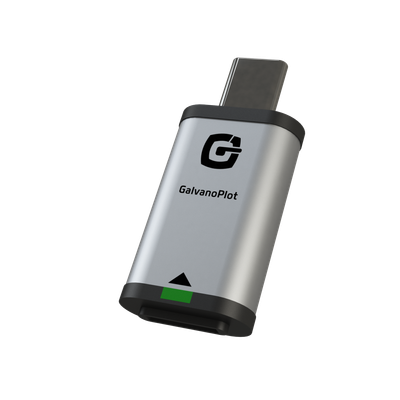

GalvanoPlot - Model GX100 Series -Super-Compact Potentiostats for Electrochemical Research
The GX100 Series represents a line of super-compact potentiostats designed for use in electrochemical research and applications. These devices are known for their minimal size, slightly larger than a single cent, which allows for portable and on-site analysis. The series supports a broad array of electrochemical techniques, including amperometric and voltammetric detection, along with impedance spectroscopy. Originally optimized for screen-printed sensor and biosensor use, they are versatile enough for other domains such as corrosion analysis, battery and super-capacitor studies, and fuel cell research. Compatible with Android devices via OTG and controlled by PC software, the GX100 Series facilitates advanced experiments with flexibility for customization. Providing up to 256 devices multiplexing by SUITE software, they offer high-resolution current measurement, advanced potential scan ranges, and standard sensor interface compatibility.
Super-compact series potentiostats are the smallest electrochemistry interface on the market, just slightly larger than one cent. A true on-site analysis in electrochemical research is possible using most popular electrochemical techniques including amperometric and voltammetric detection, as well impedance spectroscopy.
These super small and affordable instruments enable you to develop applications tailored for your research needs. Super-compact series instruments are optimized for screen-printed sensor and biosensor applications but they can also be used in many other research areas, such as other electrochemical sensors, corrosion, battery and super-capacitors or fuel cells.
Directly plug into an Android mobile device through OTG port for a true on-site analysis experience.
Advanced PC software enables control of multiple units from same screen and at the same time, setting up parallel replicates and spools for a more customized multiplexing experience.
All GX100 Series equipment are also available in GM100 form OEM Modules that enables you to build your own equipment powered with a GalvanoPlot electrochemistry engine.
Choose the instrument configuration that fits best to your electrochemistry application needs over a variety of instruments and upgrade options.
Defining the standard for screen-printed sensor interfaces.
- Super-compact and affordable
- Built-in interface for a disposable printed electrode
- Advanced software with multiplexing capability
- Covering all common electrochemical techniques
- Amperometry, Voltammetry, EIS options
- Bi-potentiostat capability
- Wired connectivity through USB and OTG
- Android mobile device compatibility
- Tailored for cost sensitive volume applications
- Replaceable and customizable sensor interfaces
A true plug and play electrochemistry device for developers.
- Identical architecture with GX102 supercompact potentiostat
- SMD module with only 3 x 3 mm footprint
- SPI interface for flexible communication
- Daisychain connection for multiplexing
- Arduino compatible with dedicated Arduino Uno Shield.
- Operating mode : Potentiostat/Galvanostat/EIS Analyser
- Current resolution : 0,002 % of current range (1 pA on lowest current range)
- Maximum current : Up to ±20 mA
- Number of channels : Up to 2
- Electrochemical cell compatibility : WE/RE/CE; WE/RE-CE; WE1/WE2/RE/CE and WE1/WE2/RE-CE
- Sensor interface : Screen printed sensor interface options: 3x2.54mm, 4x2.54 mm, 3x 3.96 mm and more
- Number of current ranges : Up to 8 and Autorange
- Number of current ranges remarks : From 10nA to 20mA
- Potential accuracy error : ≤0,1%
- Potential scan range : Up to ±3 V
- Potential resolution : From 100 µV
- EIS : 15 mHz to 200 KHz
- Impedance measurement error : <0,5% in most places
- PC interface : USB-C
- Android mobile device interface : USB-C OTG
- Multiplexibility : Up to 256 devices, by SUITE software
- Power : USB; 5VDC / 20 mA max
- Dimensions (W/H/D) : 39 x 17 x 8 mm
- Weight of the instrument : 5 gr
