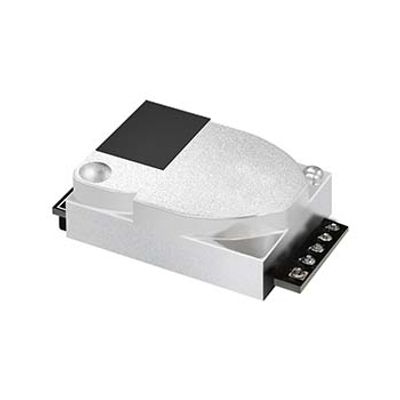

Cubic - Model CM1106SL-NS -Super Low Power CO2 Sensor
CM1106SL-NS is super low power consumption, high performance NDIR battery-powered CO2 sensor, which can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared (NDIR) technology. It is ideally suited for HVAC industry, detecting units with battery operation, portable instruments, etc.
- NDIR technology with independent intellectual property
- Super low power consumption
- Pin holes connection for flexible connection
- UART and I2C communication available
- Long-term stability, long lifespan (>15 years)
- Temperature calibration within whole measurement range
- Auto-calibration, no need of maintenance
- Small size and compact structure, easy to install
- Wide supply voltage range enables variety of battery options
- Adjustable measurement cycle by host
- ABC setting by host
- Measurement range: 0~5000ppm default
- Accuracy: ± (50ppm+5% of reading) (Note 1)
- ± (50ppm+3% of reading) (Note 2)
- Working temperature: -10℃~50℃
- Working humidity: 0~95%RH（non-condensing)
- Working current: 60uA (1 minute as measurement cycle)
- 30uA (2 minutes as measurement cycle, default in the sensor)
- 12uA (5 minutes as mea
- Power supply: DC3.3-5V
- Signal output: UART_TTL/IIC
- Dimension: W33.5*H19.7*D9.1(mm)
- Weight: 5g
- Installation: Waterproof breathable film upwards
Note 1: In normal IAQ applications, accuracy is defined with 10°C-35°C, 0-85%RH. ±(50ppm+5% of reading) could achieved under continuous power supply mode, with 4s as working cycle and moving average based on 24 data.
Note 2: In normal IAQ applications, accuracy is defined with 10°C-35°C, 0-85%RH. When the sensor is under single measurement mode (controlled power supply by host), the sensor reading output is without moving average. The defined accuracy ±(50ppm+3% of reading) is based on data moving average≥5 and range of 400~2000ppm.
Fresh Air System Controller
For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.
Air Quality Monitor
With the improvement of people`s living standards, more and more people begin to pay attention to the air quality of their living environment.
NDIR Technology
The infrared light is directed by the infrared source passing through the gas chamber towards the detector.CO2 molecules inside the gas chamber will only absorb a specific wavelength of the light.
