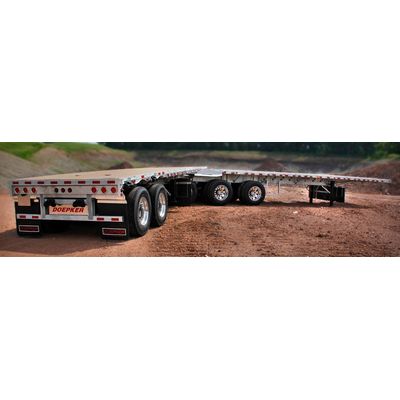

Super - Model B -Galvanized Flat Decks Trailer

STANDARD FEATURES:

• Models DSL 30 or DSL 50 - Both Available in Tubing or Channel Side Rail
• Length 32` Lead; 28` Rear
• Overall Width 8 1/2`
• Deck Height DSL 30 - Approx 58" at Front and 50" at Back
• DSL 50 - Approx 58" at Front and 53" at Back
• Distibuted Load Distributed Load - All Models - Approx 110000 Lbs
• DSL 30 - 10` Concentrated Load - Approx 40000 Lbs
• DSL 30 - 4` Concentrated Load - Approx 30000 Lbs
• DSL 50 - 10` Concentrated Load - Approx 60000 Lbs
• DSL 50 - 4` Concentrated Load - Approx 50000 Lbs
• Tare Weight TBD
• GVWR 35000 kg - Lead, 35000 kg - Rear
• Landing Gear Jost Magnum 2 Speed Landing Gear
• Optional: Holland 2 Speed Landing Gear
• King Pin Lead Set at 30" or 36" - 1/4" or 3/8" Coupler Plate Available
• Rear Set at 24" - 1/4" or 3/8" Coupler Plate Available
• Main Beams Web: 3/16" High Tensile
• Flange: 3/8" x 6" High Tensile Steel
• Bottom Flange on Lead of DSL 50 Only:  1/2" x 6" High Tensile Steel
• Cross Members DSL 30 - 4" High Tensile Jr I Beam on 18" Centers
• DSL 50 - 4" High Tensile Jr I Beam on 12" Centers
• Side Rail 6" Channel with 3/8" x 2" Rub Rail
• Stake Pockets Set at 24" Centers
• Rear Bumper 10 Gauge Formed Panel Rear Bumper
• Rear Impact Guard on Rear Trailer
• Optional: Dock Bumpers on Back of Rear Trailer
• Optional: Tow Hooks at Back of Rear Trailer
• Winches D/S Layout With Bolt-On Design - 30 Winches (16 on Lead; 14 on Rear D/S, 2 on Rear C/S at Back)
• Optional: 2 Winches at Back of Rear With Cross Pallet Hook Assembly at 4` - 1"
• Optional: Tarp Hooks on 24" Centers
• Decking  2" x 6" T & G Fir Decking
• Optional: Coil Option - 2" x 6" T & G Fir Outside Main Rails, Hardwood Inside Main Rails
• Air System Aluminum Air Tanks
• Inline Air Filtration System Built into Glad hands
• Air Gauge Box with Window
• Tires Michelin or BF Goodrich
• Rims Various Steel and Aluminum Options
• Serial Plate(s) Canada/U.S.
• Safety Certified Yes

SUSPENSION:

• System Hendrickson Intraax HXL5 Long Life Dressed Axle - AANT-23K-LDA-14 Air Ride with Cam Tube Enclosures
• Optional: Doepker Auto Lift management System with Meritor Control Valve
• Brakes Abex 16 1/2" x 7" Extended Life
• Antilock Braking System Meritor Wabco 2S2M on Lead; Optional: 4S2M
• Meritor Wabco 2S1M on Rear; Optional: 2S2M
• Axle Spread Lead - 60" Tridem, Rear - 49" Tandem, 77 1/2" Track Width
• Auto Slack Adjusters Gunite
• Spring Brake Pots 30/30 TSE Omnibrake
• Optional: TSE Ultra-Life
• Wheel End Cast Hub and Drum
• Optional:  Duralight Hub and Centrifuse Drum Combinations
• Optional:  Hubodometer - Metric or Imperial

PAINT AND FINISH:


• Special Coatings Hot Dip Galvanized Main Deck and Frame
• Landing Gear Painted Black
• Softcoat Grey Coating on Suspension
• Safety Reflective Tape

LIGHTING:


• Wiring Harness Severe Duty Sealed Harness System
• Custom Designed by Grote for our Light Packages
• Lighting Grote LED as per CMVSS with Side Signals
• Optional: Wide Load Lights

PROTECTIVE FEATURES:


• Mudflaps Doepker Mudflaps at Back of Lead and Rear Trailers
• Mudflaps in Front of Brake Bots on Front Axle
• Mudflaps Full Width in Front of Landing Gear
• Fenders Aluminum Checkerplate Over Center Axle of Tridem Group on Lead Trailer
• Aluminum Platform on Back of Lead
• Forklift Brackets Optional: Forklift Brackets on Rear Trailer Including Chain Axle Slings
• Chain Hangers Optional: Tire Chain Hangers on C/S of Lead Trailer
• Toolbox & Dunnage Options Set of Toolbox Brackets on Lead D/S & C/S for a 55" Long Box
• Set of Toolbox Brackets on Rear D/S & C/S for a 43" Long Box
• Optional: 24" D x 24" H x 55" L Aluminum Checkerplate Toolbox
• Optional: 24" D x 24" H x 55" L Premium Smooth Aluminum Toolbox
• Optional: 24" D x 24" H x 43" L Aluminum Checkerplate Toolbox
• Optional: 24" D x 24" H x 43" L Premium Smooth Aluminum Toolbox
• Optional: Bolt-On Cross Frame Dunnage Rack Ahead of Suspension on Lead Trailer
