Nolek - Model S9 -Superior Leak Test Instrument
The S9 is a superior leak test instrument available for different working pressures, from vacuum pressure to 15 bar. The powerful, all-round classic test instrument Nolek S9 is used to perform leak testing on products that need to be air or liquid proof. Testing with over-pressure or vacuum is carried out quicker, easier, and cheaper than testing using the product’s working media. The S9 is a superior leak test instrument available for different working pressures, from vacuum pressure to 15 bar.
- High accuracy
- Well known global concept
- Flexible setup possibilities
- Standard and specials

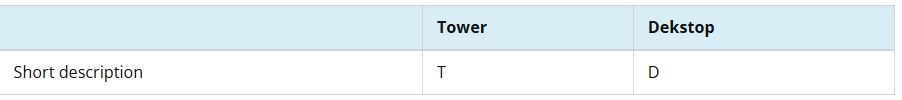

- Tower and desk models
- Combined pressure ranges
- Optional fixture control
- Ranges of leak measurement: -500 Pa to 500 Pa (dpt)

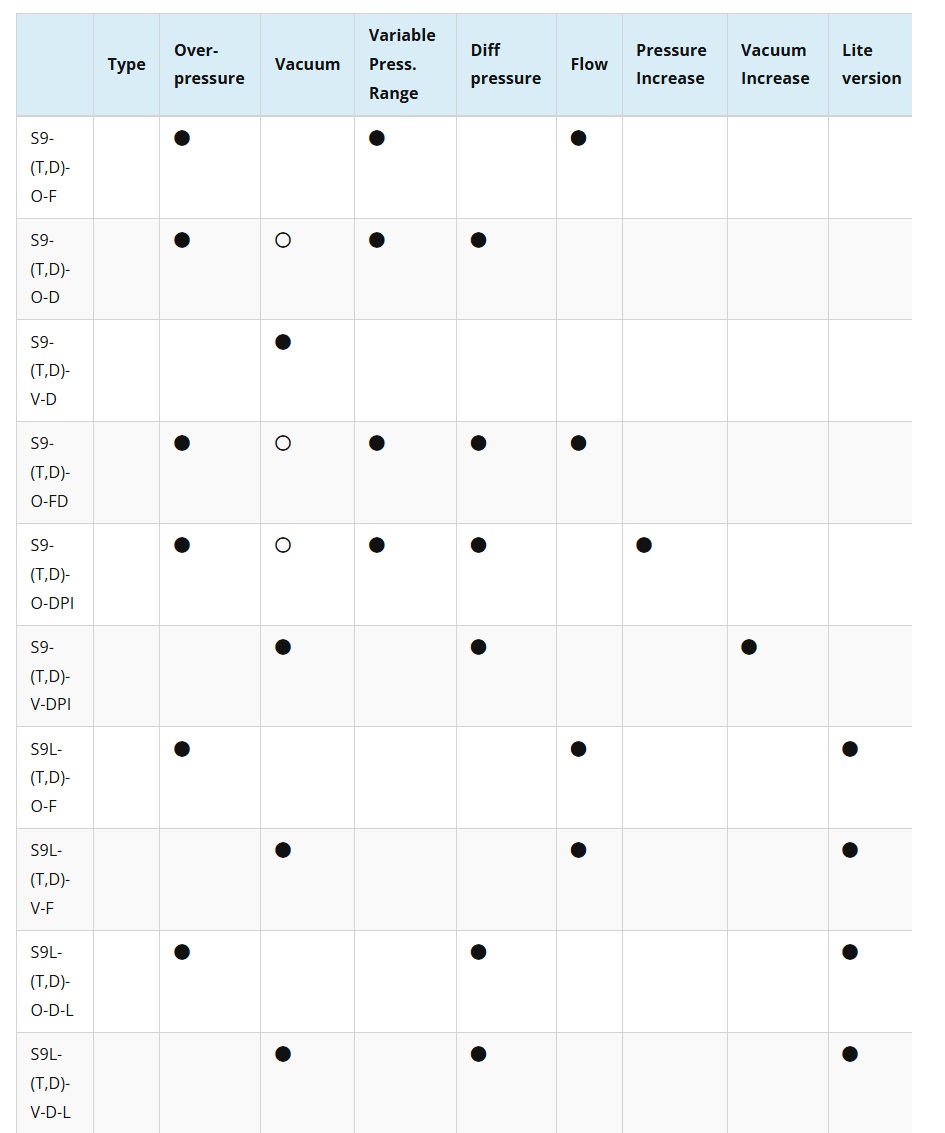

- Measuring possibilities: Differential pressure, Mass-flow, Pressure increase, Vacuum increase and Time-Dosing
- Pressure range(s): 100 till 0 kPa (Vacuum) 5 till 1500 kPa (Overpressure) (5 standard versions)
- Standard/optional(o)communication: RS232, HW I/O9(o), TCP/IP(o)
- Interface: Optional 7” TFT Display, monochrome Fixed or separate for easy integration
- Dimensions H x W x D: 400 x 188 x 315 mm
- Weight: Approx. 16kg
- Air supply: 550 - 600 kPa / 79 - 87 PSI
- Operating temperature: 5 to 40 °C
- Languages: English, Danish, German, Swedish, Spanish and Dutch.
- Display Unit: Pa, cm3/m, mm3/s, l/min Bar, kPa, Psi

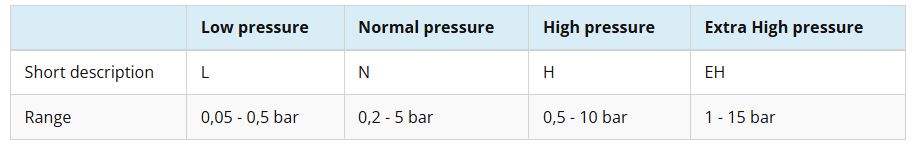

All types of the S9 can be ordered in different pressure ranges, as listed below. The pressure range is part of the product type, for example S9-T-O-D-L for a Low pressure version of this type.
S9 Lite is only available in Low pressure range.
All types of the S9 can be ordered in different pressure ranges, as listed below. The pressure range is part of the product type, for example S9-T-O-D-L for a Low pressure version of this type.
S9 Lite is only available in Low pressure range.
