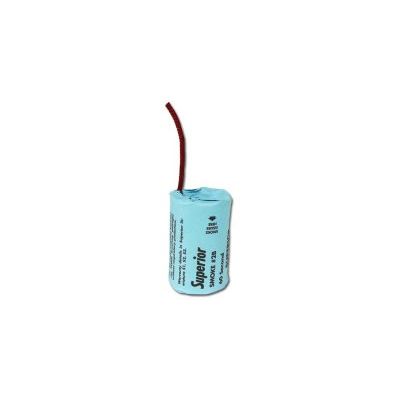

Superior Signal - Model 2B -Smoke Candles, 12-Pack

SHARE

60 second burn, 8000 cubic feet visable smoke. 2B Superior Signal Smoke Candles produce large quantities of dense, white smoke for tracing air flow patterns and leak-testing. Start the 2B smoke candles with a match or lighter. They produce no flame, only 8000 cybic feet of smoke by a thermogenic chemical reaction over a 60 second burn time.

Most popular related searches
smoke candle
air flow visualization
air flow tracer smoke
waste collection system
smoke alarm
air flow smoke
leak detection
wind tunnel
HVAC system
smoke testing
  • Fire Mechanism: Fuse (can also be fired electronically)
  • Smoke Output: 8000 cubic feet, visable
  • Duration: 60 seconds
  • Dimensions: 2.0" long by 1.5" diameter
  • Will trigger smoke alarms
  • 12 candles per package
  • Made from non-explosive materials
  • MSDS available
  • Shippable by ground or air
  • Made in the USA
  • Warranty: 1 year if stored in cool, dry conditions

Leak Detection: Smoke from a Superior Smoke Candle is highly visible, blending readily with air and gases.  While a burning smoke candle is hot, the resulting smoke is cool and does not support combustion.  Invisible leaks become readily detectable when Superior Smoke is added.  To detect leaks in small- or medium- sized enclosures--such as furnaces, tanks, piping systems and ductwork--use enough smoke to fill a volume at least 2-3 times greater than that being tested.


Air-Flow Studies: Superior Smoke Candles simplify the observation of flow patterns in all types of wind tunnels, air-moving equipment, and natural airflow, indoors or out.  Generally, 1 part smoke to two parts air (volume:volume) provides readily viewable results.  Balance HVAC system by observing the discharge of smoke from ducts and supply grilles.

Photography: Smoke from Superior Smoke Candles photographs from white to dark gray, depending on smoke density and lighting.  Dramatic color effects can be achieved by directing colored lights through thin concentrations of the smoke.

The Superior method of generating smoke by thermogenic chemical reaction eliminates costly equipment and time consuming operations in pinpointing leaks.  Smoke tests effectively and inexpensively reveal leaks and other faults in heating and air conditioning duct work, furnaces, tanks, piping and sewerage/waste collection systems, semi trailers and shipping containers.  Superior Smoke Candles are ideal for observing air flow patterns, evaluating exhaust systems, photography, dislodging animals and triggering smoke alarms. Smoke varies in color from white to gray depending upon density and lighting.  Superior Smoke Candles contain no explosive materials.

Caution:  The smoke emitted from Superior Smoke Candles is non-toxic, but can irritate breathing passages when respiratory protection is not used.
