Potential - Supernatant Decanter

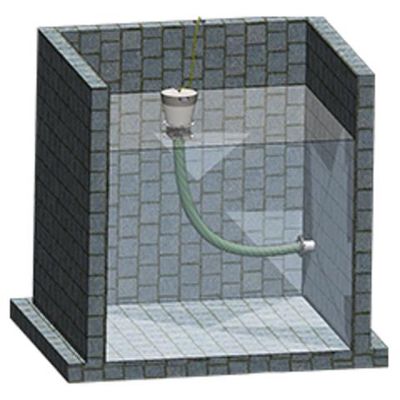

Supernatant decanter is a floating type decanter. It is used to remove supernatants from the upper portion of the basin. It collects water from below the top surface of precluded foam, sludge, scum, or other floatable material. To control the decanter flow rate, a standard open/close valve is used. No electro-mechanical component is used inside the tank thus, facilitating ease of operation and maintenance. To restrict the lower movement of the decanter a stand is provided at the bottom of the tank. A flexible joint helps in changing the position of the decanter with changes in liquid levels.
Supernatant decanter collects water from below the top surface of precluded foam, sludge, scum, or other floatable material. A standard open/close valve is used to discharge piping to control the flow rate from the decanter. No electro-mechanical components are used inside the tank thus, making operation & maintenance easy.
- Decanter size: 150 mm, 200 mm & 250 mm
- Decanter Capacity at 3 m height (m3/h): 250, 425 & 680
- Decanter Capacity at 1 m height (m3/h): 150, 215 & 350
- Control: PLC based with manual overrides
- Floating Design
- External mounted valve
- Easy installation
- Safe operation in hazardous area
- Spares easily available
- SBR Plants
- Oil & Gas
- Wastewater & Water
- Power
- Steel
- Municipal
- Mining
- Dairy
- Sugar
- Pharma
- Food & beverages
- Chemicals
- Miscellaneous (Wood, textiles, glass, paper etc)
