Aqua-Aerobic Aqua-Jet - Model SS-PW -Surface Mechanical Aerator
The Aqua-Jet SS-PW surface aerator is Certified to NSF/ANSI 61 by UL for use in potable water applications. The approval includes 1, 2, 3, 5, 7.5, 10, and 15 HP units designated as model SS-PW and can be utilized for THM stripping applications or circulation in potable water treatment systems and reservoirs with a minimum volume of 100,000 gallons. THM stripping involves the removal of Trihalomethane (THM), which represents a group of volatile organic compounds formed by the interaction of organic precursors in raw source water and free chlorine added for disinfection. The Aqua-Jet aerator model SS-PW offers a lower cost aeration solution for THM stripping applications from the perspective of capital, installation and operating cost when compared to diffused aeration or other spray aeration products.

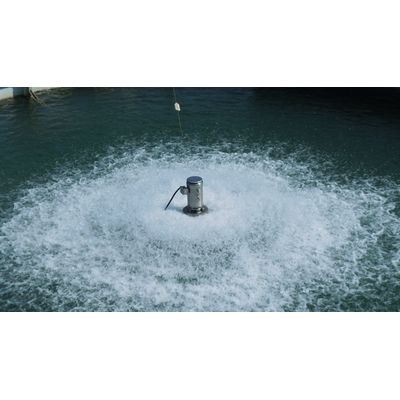

Basin water is pumped up into the intake cone and through the volute, and is dispersed through the diffusion head in a spray pattern.
Oxygenation occurs at two critical points:
- When the water exits the diffusion head, and
- When the spray enters the water surface

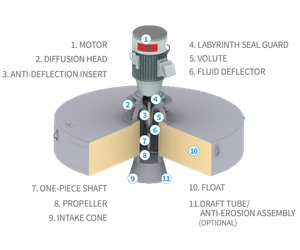

Motor
Standard 3-year warranty, severe duty, totally enclosed fan-cooled (TEFC), Class F insulation, 1.15 service factor
Diffusion Head
Monolithic casting, 304 stainless steel (ss), limits vibration
Motor Shaft
One-piece, 17-4 precipitation hardened (PH) ss, eliminates couplings
Float
Fiberglass or 304 ss exterior. Interior closed-cell polyurethane foam adds structural stability and prevents sinking. Heavy wall ss volute.
Propeller
Two-blade design precision cast, 316 ss, non-clog operation
Intake Cone/Anti-Vortex Cross
304 ss, provides minimum headloss
- Certified to NSF/ANSI 61 by UL for use in potable water applications
- Vibration limiting design; velocity of 0.3 inches/second or less
- Proven oxygen and mixing performance
- Easy and flexible installation
- Short lead times
- Easily incorporated into existing plants
- Units are retrievable for easy access
- Various mooring arrangements available
- Endura® Series low maintenance motors save energy, reduce O&M costs and increase performance
