Aqua-Aerobic Aqua Jet - Surface Mechanical Aerator
The Aqua-Jet aerator is a mechanical direct-drive unit designed to provide optimum oxygen transfer in a variety of municipal and industrial wastewater applications. The performance of the Aqua-Jet aerator also provides the mixing necessary to uniformly disperse oxygen and organic matter within the microbial population. The robust design and use of the highest quality materials have also made the Aqua-Jet the most trusted aerator in the industry, outlasting other aerators 2 to 1.

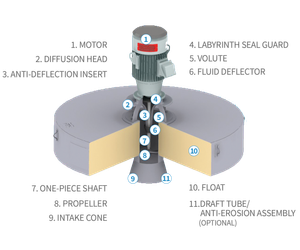

Basin water is pumped up into the intake cone and through the volute, and is dispersed through the diffusion head in a spray pattern.
Oxygenation occurs at two critical points:
- When the water exits the diffusion head, and
- When the spray enters the water surface
Motor
Standard 3-year warranty, severe duty, totally enclosed fan-cooled (TEFC), Class F insulation, 1.15 service factor
Diffusion Head
Monolithic casting, 304 stainless steel (ss), limits vibration
Motor Shaft
One-piece, 17-4 precipitation hardened (PH) ss, eliminates couplings
Float
Fiberglass or 304 ss exterior. Interior closed-cell polyurethane foam adds structural stability and prevents sinking. Heavy wall ss volute.
Propeller
Two-blade design precision cast, 316 ss, or 15-5 ss non-clog operation
Intake Cone/Anti-Vortex Cross
304 ss, provides minimum headloss
- Vibration limiting design; velocity of 0.3 inches/second or less
- Proven oxygen and mixing performance
- Easy and flexible installation
- Short lead times
- Easily incorporated into existing plants
- Units are retrievable for easy access
- Various mooring arrangements available
- Endura® Series low maintenance motors save energy, reduce O&M costs and increase performance
