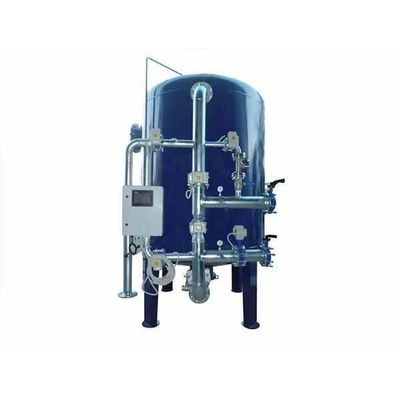

Zetas - Surface Piping Water Softening Systems
FromZetaş Kimya
Calcium-magnesium ions dissolved in water cause hardness in water. Aqualine water softening systems are systems that remove calcium (Ca) and magnesium (Mg) ions that cause hardness. For this reason, the softening system contributes to the softening of drinking water and improving its taste by removing the hardness in the water. Softening systems automatically perform the regeneration processes on the planned day of the week, at the specified time, without the need for any intervention. The resin, which has reached saturation, is regenerated with salt water and is purified from calcium and magnesium ions.
Most popular related searches
water softening system
softening system
water softener
water softening
water treatment system
pneumatic valve
hard water softener
hard water
throttle valve
flow meter
Water softening systems
- FRP or epoxy painted carbon steel tank
- with Aqualine branded cationic resin
- The maximum working pressure is 6 bar.
- The system is controlled by a flow meter
- Pneumatically operated throttle valves (optional electrically operated valves)
- S -1220 and S -1620 lower manifold is a side diffuser S -2020
- and S-2420 subassembly is plate type with KSH diffuser
- Pipes made of surface PVC-U material (optional galvanized surface pipes)
- Sample taps and manometers at system inlet and outlet
- PLC based control panel with Siemens logo (optional touch screen)
- Electricity 220V / 50 Hz / 1 pH
- resin for 1 l; Take 150 gr.
- Salt consumption resin capacity 6000 Fr/liter
- Dry tool air is required for pneumatic valves to work.
- Recommended minimum compressor capacity is 100 Lt/min @ 8 bar.
