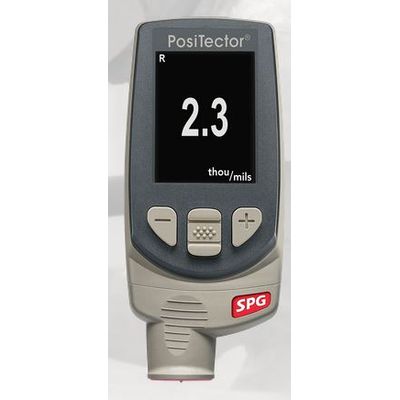

PosiTector - Model SPG -Surface Profile Gages
Surface Profile Gages for Blasted Steel, Textured Coatings and Concrete Profile
Most popular related searches
surface profiler
tungsten carbide
shock absorber
acid water
acidic water
depth measurement
concrete coating
traceable calibration
profiling probe
temperature monitoring
Digital depth micrometer measures and records peak to valley surface profile heights
- Solvent, acid, oil, water, and dust resistant – weatherproof
- Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable
- PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
- Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip),
U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772 and others
U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772 and others
Simple
- Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
- Enhanced one-handed menu navigation
- RESET feature instantly restores factory settings
Durable
- Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable tips
- Solvent, acid, oil, water and dust resistant - weatherproof
- Rugged, indoor/outdoor instrument - ideal for field or shop use
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to PTB included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Glass Zero Plate and metal check shim included
- Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17
Versatile
- 30º angle interchangeable probe tip available for special surface profile applications
- Cabled probes available for blasted steel, textured coatings and concrete profile
- Selectable display languages
- High contrast LCD with backlit display
- Flip display enables right-side-up viewing
- Uses alkaline or rechargeable batteries (built-in charger)
- Mils/Microns switchable
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max depth and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode – faster measurement speed for quick inspection
- Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- Software Updates via web keep your gage current
- Screen Capture – record and save image into USB flash memory for record keeping and review
- Software Solutions for viewing, analyzing & reporting data
- Every stored measurement is date and time stamped
See probe compatibility chart for more information.
Standard Models
Includes ALL features as shown on left plus...
- Storage of 250 readings per probe—stored readings can be viewed or downloaded
Includes ALL features as shown on left plus...
- Storage of 100,000 readings in up to 1,000 batches and sub-batches
- SmartBatch™ allows entry of user-defined parameters and criteria to comply with various standards and test methods
- Live graphing of measurement data
- Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
