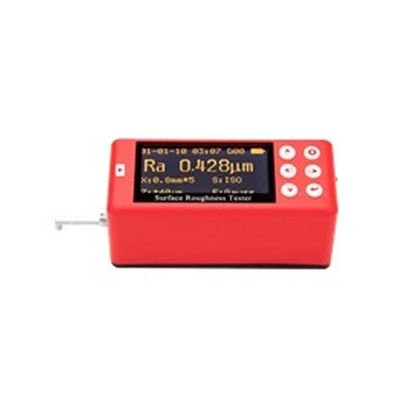

APS MITECH - Model MR200 -Surface Roughness Tester
The MR200 surface roughness tester is a new upgrade instrument which adopts the newest processor. This instrument adopts 2.7 inch OLED display, combines accurate measurement, exquisite design, fast process rate and complete protection in one host. It is highly favored by users since it was produced, it has large measurement range, superior than other similar products and can meet different needs of users. By connecting with Micro-USB port, Bluetooth, SD card, it can do wireless remote control, measurement, print and communicate with PC and store massive data. It has been widely used in the quality control process of various precision metals, plays an important and necessary role in rising production qualification rate and saving cost.
Mitech MR200 Instrument Surface Roughness Tester
- Brand:Mitech
- Model:MR200
- Measuring range:Z Axis(Vertical)320μm,X Axis(Horizontal)17.5mm
- Resolution Accuracy:Z Axis(Vertical)0.01μm/±20μm,0.02μm/±40μm,0.04μm/±80μm,0.08μ
- Communication storage:Can store 20 sets of measurements results;,MICRO-USB
- Working time:More than 16hours
- Main unit weight:360g
- Dimensions:119×47×65mm
- Package dimensions:36*27.5*13cm
- Total weight:2.4kg
- Measurement range: Z Axis(Vertical)320μm(Ra=80μm),X Axis(Horizontal)17.5mm
- Resolution Z Axis(Vertical)0.01μm/±20μm,0.02μm/±40μm,0.04μm/±80μm,0.08μm/±160μm,
- Parameters Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz(JIS), Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz(JIS), Ry(JIS), RSk, R3
- Filter RC,PC-RC,Gauss,D-P
- Sampling length(lr) 0.25,0.8,2.5mm
- Assessment length(ln) Ln= lr×n,n=1~5
- Probe Principle:Differential Inductance.Ruby, Longitudinal radius 40mm
- Accuracy <=±10%
- Repeatability <=6%
- Power Built-in Lithium ion battery, AC adapter 8.4V,800mA
- Dimensions 112×50×47mm
- Net weight About 360g
