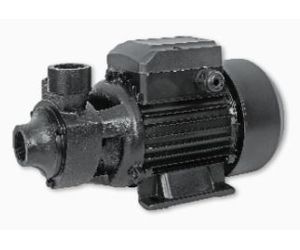

Surface Solar Pump
Used to increase water pressure. Allow water to be transported to higher and Bigger ranges. Working with solar energy, it is the most attractive water supply method in the sun-rich regions of the world, especially in remote areas that lack electricity.
Most popular related searches
level probe sensor
water level probe
water level control
water level controller
stainless steel pump
surface solar pump
water proofing
level probe
swimming pool
level controller
- Intlet/Outlet:304 Stainless Steel
- Pump Body:304 Stainless Steel
- Motor Body:Die-cast Aluminum
- Bear:NSK
- Screw:316 stainless steel
- Moter:Permanent Magnet Brushless DC Motor(Without Hall)
- Controller:32bit MCU/FOC/Sine Wave Current/MPPT
- Controller Shell:Die-cast Aluminum(IP67)
- 1. Waterproof grade: IP65
- 2. VOC range:
- 24/36V controller: 18V-50V48V
- controller: 30V-96V72V
- controller: 50V-150V96V
- controller: 60V-180V110V
- controller: 60V-180V
- 3. Ambient temperature:-15℃~60℃
- 4. Max. input current:15A
- 5. MPPT function, the solar powerutilization rate is higher.
- 6. Automatic charging function:
- Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- 7. LED displays the power, voltage, current, speed etc working condition.
- 8. Frequency conversion function:
- It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually.
- 9. Automatically start and stop working.
- 10. Water proof and leak-proof: Double seal effect.
- 11. Soft start: No impulse current, protect the pump motor.
- 12. High voltage/Low voltage/Over-current/High temperature protection
- Maximum power point tracking (MPPT), fast response and stable operation.
- Run (under load) protection.
- Maximum current protection of the motor.
- Low frequency protection.
- Dual mode input, compatible with DC and AC power inputs.
- The (power/flow) performance curve calculates the flow output of the pump.
- Fully automatic operation, digital control of data storage and protection functions.
- The LED displays the operation panel and supports remote control.
- Low water level probe sensor and water level control.
- Powerful lightning protection.
- Drinking Water
- Fish Farming
- Poultry Farming
- Cattle Farming
- Drip Irrigation
- Household Water
- Car Washing
- Swimming Pool
- Garden watering
