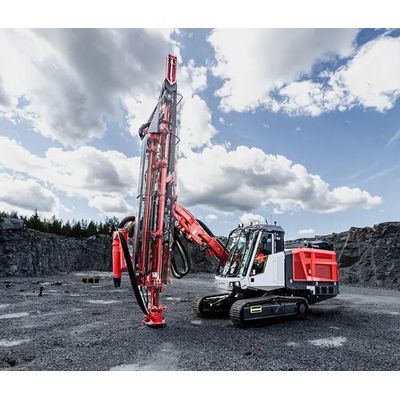

Sandvik - Model Pantera™ DP1610i -Surface Top Hammer Drill Rigs

SHARE

Pantera™ DP1610i is an intelligent, diesel-powered, self-propelled, crawler-based surface top hammer drill rig with a comfortable cabin and rod-changer. Designed for large hole size drilling, it is ideal for production drilling in large quarries or open pit mines, as well as construction work sites and wall control and development works.

Most popular related searches
top hammer drill rig
surface drill rig
drilling rig
drill hammer
rock drilling
hydraulic rock drilling
drilling rock
overburden drilling
drilling rod
hydraulic drilling

Push the limits of top hammer drilling

Engineered for large hole drilling, Pantera™ DP1610i excels in drilling holes ranging from 102 to 178 mm (4 to 7 inches) in size. Together with RD1840C rock drill and robust LT90 rock tools, it has a high capacity for large hole drilling without increasing the rig’s physical footprint.

Built for high reliability and uptime

Pantera™ DPi is built for reliability and uptime — even in extreme conditions. Upgraded components like the CSL system, reinforced boom, and heavy-duty parts extend service life and maintenance intervals. My Sandvik’s digital tools for machine health and consumables tracking boost efficiency and OPEX control.

Smarter, safer, and more comfortable drilling

Pantera™ DPi has been upgraded to make daily work easier and safer. A quieter, low-vibration cabin boosts operator comfort, while touchscreen controls give easy access to all rig functions - from drilling parameter setups to troubleshooting instructions. Smart features like iClean take care of overburden drilling automatically and feed-to-tram automation enables smooth switching between drilling and tramming at the push of a button. Other optional intelligence features include one-hole automation, TIM3D and Driller's Notes, for maximized drilling performance.

  • Hole diameter : 102.0 - 178.0 mm (4.0 - 7.0 in.)
  • Rock drill : 49 kW
  • Flushing air capacity : 14 m³/min up to 10 bar
  • Drill rod/tube diameter : 51, 60 or 87 mm (2, 2.375 or 3.5 in.)
  • Hydraulic rock drill : RD1840C (49 kW) / RD1740C (40kW) as option
  • Engine : Caterpillar C9.3B 280 kW (375 hp) / 1 800 rpm (Tier 3) Caterpillar C9.3B, 280 kW (375 hp) / 1 800 rpm (Stage V)
  • Cabin : Ergo cool
  • Transport length : 11.5 m (37.0 ft)
  • Transport width : 2.50 m (8.00 ft)
  • Transport height : 3.3 m (11.0 ft)
  • Weight : 23,000 kg (50,706 lb)
