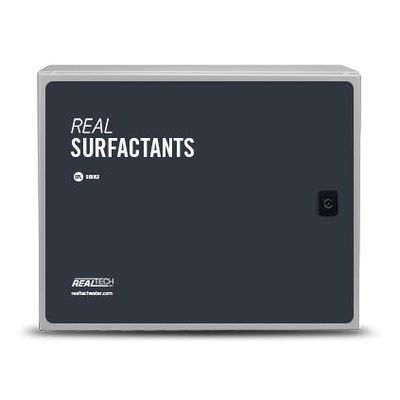

Real Tech - Model SFL Series -Surfactants Sensor
Real Tech’s bypass Surfactants sensor provides real-time measurement of surfactants in water or wastewater. The sensor utilizes UV light for measurement, continuously measuring multiple wavelengths between 200 and 300 nm. Designed to meet the needs of many monitoring applications, the SFL series offers multiple multiple flow cell designs and sensor path length selections for the desired measurement range. Parameter: Surfactants.
LIQUID AI COMPATIBLE
Our Liquid Ai data services complement our real-time water quality monitoring systems. Our Remote Monitoring platform is a powerful data management and visualization tool that enables access to data anywhere, anytime.
- Reliable real-time surfactants monitoring
- Optical measurement method (reagent free)
- Wastewater to high purity measurement ranges
- Bypass style sensor with multiple flow cell selections to meet application demands
- Operator friendly, low maintenance design
- Easy to install and operate
- Liquid Ai compatible
- Path Lengths:
- 0.5, 1, 2, 4, 10 mm (1000 series)
- 1, 2, 4, 8 mm (2000 series)
- 25, 50, 150 mm (4000 series)
- Parameters: Surfactants
- Range: Depends on model selected. Refer to range chart
- Units: mg/L, ppm
- Sampling Time: 1 minute
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning: In-situ chemical cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional
- Self-Diagnostics: Detection and diagnosis of internal system fault
- Alarms: Dry contact terminals allow for operator configurable alarms for: high and low set points, low lamp output, leak detected, system fault, etc.
- Humidity Control: Humidity sensor with large plug-in regenerating desiccant system
- Wavelengths: Multiple Wavelengths
- Light Source: Xenon Flash Lamp
- Lamp Life: 2-5 years
- Flow Rate:
- 500 - 1000 mL/min (1000 series)
- 300 - 1000 mL/min (2000 and 4000 series)
- Pressure Rating:
- 85 PSI maximum (1000 series)
- 20 PSI maximum (2000 and 4000 series)
- Fluid Connections:
- 3/8" OD tube push-in fittings (1000 series)
- 1/4" OD tube push-in fittings (2000 and 4000 series)
- Wetted Materials:
- Kynar, FEP, Quartz, SS316L, Viton (1000 series)
- Kynar, Polyethylene, Quartz, SS 316L, Viton (2000 and 4000 series)
- Electrical/Comm.: From controller
- Ambient Temp.: 0 to 45°C (32 to 113°F)
- Water Temp.: 0 to 35°C (32 to 95°F) at 21°C (69.8°F) Ambient temperature
- Enclosure: NEMA 4, wall mountable
- Weight: 44 lb
- Dimensions: 19.0”H x 20.5”W x 9.0”D
- Warranty: 2-year limited warranty (Extended care packages available)
- Sensor Upgrades: Cooling Upgrade I, Cooling Upgrade II
* Technical Specifications are subject to change without notice.
* Water temperature range based on material compatibility only. Contact Real Tech to verify application.
