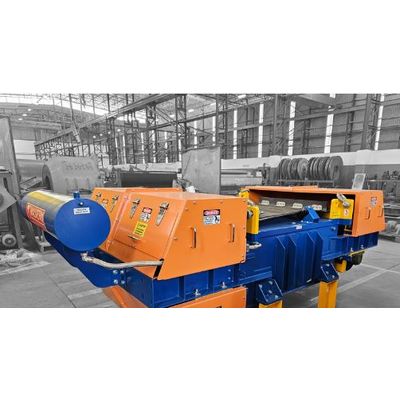

Malvern - Suspended Electromagnets for Tramp Metal Removal
Malvern's suspended electromagnets are designed for the removal of tramp metals in the material handling industry. These heavy-duty magnets are powered by DC currents and are oil-cooled. They play a crucial role in protecting downstream equipment from damage caused by rogue steel components like liner plates, picks, roof bolts, and hand tools. These magnets, which range in size from 400 kg to 25,000 kg, are suspended over conveyor belts and head pulleys, providing an effective solution for diverse operational needs. Available in manual and self-cleaning configurations, they can be tailored to specific requirements, although permanent magnets are not recommended for heavy mining applications. These products feature heavy-duty magnet casings, transport legs, terminal boxes, and oil expansion tanks. Proper data is essential for selecting the correct magnet size to ensure optimal performance, and Malvern offers detailed product brochures to assist in this process.Most popular related searches
tramp metal removal
tramp metal
conveyor belt
protective equipment
cooling system
belt conveyor
conveyor pulley
cooling conveyor
thermocouple
SUSPENDED ELECTROMAGNETS
Malvern’s comprehensive range of Tramp Metal Removal Magnets are of heavy duty construction. The magnets are powered by DC currents and oil cooled, suspended over conveyor belts and head pulleys in the material handling industry. Permanent magnets can also be provided for specific requirements, not recommended for heavy mining applications. The purpose of the magnet is to protect downstream equipment, by the extraction of rogue steel components such as liner plates, picks, roof bolts, hand tools, etc. which can enter the process plant and cause damage to equipment. These magnets are available in Manual Cleaning and Self Cleaning configurations, and sizes range from small (400kg) to large (25000kg) units.
- For the removal of tramp metals from moving conveyor belts carrying bulk solids.
- For protecting downstream machinery
- Manual Cleaning Type
- Self Cleaning Type
- Aluminium Coils as Standard
- Copper Coils on special request
- Forced Cooled Units with External Heat Exchange
- Coils – Specially designed from aluminium and copper with a 3 year warranty.
- Oil Expansion tank
- Control Panels – Standard Malvern design, or customised to special requirements.
- Guards – Provided with removable panels for easy access of greasing points.
- Heavy Duty Belt Design – Class 315/3 ply with quick release fastener & HD matting.
- Special Designs For Specific Applications
- Non Flammable Options – Silicon Oils.
- Air Cooled (Wagner)
- Forced Oil Cooling
- Oil Cooled (standard) Air Cooled
- Pulley Nip Angles
- Quick Release Guards for Greasing
- Bearings
- Drive Options : V-belt / Hollow Shaft / Rubber Coupling
- Belt Slip Detection Device
- PT100 Thermocouple: 4-20mA Output Signal
- Heavy Duty Adjustable Chain Slings
