Insite - Model 15T -Suspended Solids Sensor

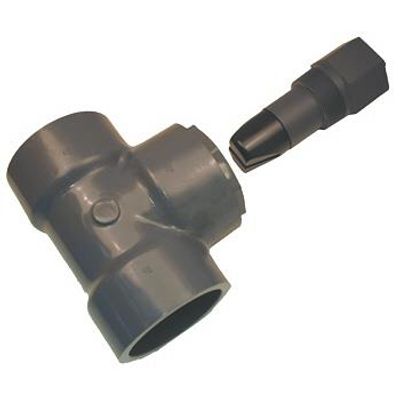

The Model 15T Suspended Solids Sensor is intended for sample by-pass lines of mixed liquor, return, or waste activated sludge. The by-pass loop is generally configured using customer supplied full port ball valves on both sides of the tee. The supplied tee (as shown) is Schedule 80 PVC, with 3" slip connections for process piping and a 2" female NPT connection for the SS probe. The integrated jet clean with this sensor includes an in-line check valve. There is a flow indication groove on the back of the sensor mount that should be parallel with the flow. Maximum in-line pressure is 20 psi. See the Single Channel Analyzer (SCA) manual for additional information. Recommended for: 250 - 30,000 mg/l.
