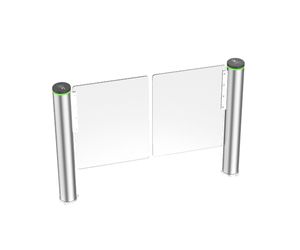

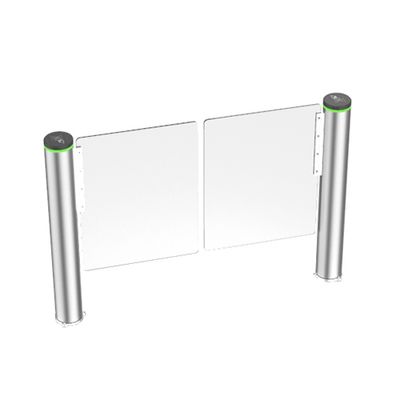

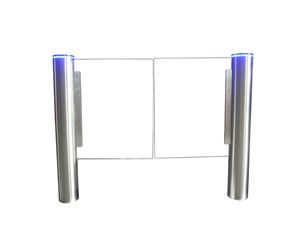

Jayda - Model JDBZ-22 -Swing Arm Optical Turnstile

Swing arm optical turnstile, cylinder swing barrier gate turnstile designed with small footprint providing a comfortable means of access for the disabled and large deliveries

Optical swing arm turnstile JDBZ-22 operates in a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life. Meanwhile, swing barrier turnstile JDBZ-22 provides single directional or bi-directional access and easily integrate any access control systems or device with dry contact output. Becausee of the unique design and rapid throughput, optical swing arm JDBZ-22 is an effective contactless crowd control solution for corporate lobbies, building entrances, apartment complexes, universities.

Swing Arm Optical Turnstile Features
1. Smooth and fast opening of barriers
2. Solution for disabled and trolley access
3. Free egress in emergencies or loss of power
4. Quick and precise panel movement and alignment
5. Motorized panels open quickly and smoothly away from the user
6. Slim cabinet allows optical turnstile use in compact spaces
7. Upscale look suitable for any premium lobby
8. Run more smoothly and stop quickly after being blocked
9. Streamlined design with a more modern aesthetic
10. Adopt more reasonable electric control and layout to improve the protection level

Swing Arm Optical Turnstile Applications
Subway
Large venues
Stadium
Commercial buildings
Fitness center

Swing Arm Optical Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 140 x 140 x 1050mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600~900mm
Drive Motor: DC 24V brushless motor
Pass Speed: 30 ~35 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

What is swing arm optical turnstile?
Swing arm optical turnstile is a classic type of waist optical touchless turnstile combining the security of a physical barrier turnstile with the sophistication of optical beam detection to prevent tailgating and unauthorized entry with ease. Swing turnstile gate is designed with sleek styling and modern appearance, and such modern optical turnstile blends right in and complements its surroundings seamlessly with its included illumination packages and sleek, modern styling. Swing optical turnstile barrier usually comes with slim size and very compact footprint by which solves the issue of introducing security and safety into small and valuable areas of real estate spaces. On the other hand, optical swing turnstile gates are equipped with standard interfaces to be integrated various access control systems to achieve multipl recognition ways.

How does a swing arm optical turnstile works?
Swing arm optical turnstile is an efficient and effective crowd management designed to control pedestrians entering or exiting restricted areas, usually under surveillance, in low security situations. Swing arm optical turnstile provides bi-directional access in conjunction with a facility access control system. When enter, pedestrians need to present a valid credential which opens the turnstile’s motorized barriers in the requested directions, allowing a single passage at one time. If an unauthorized pedestrian attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm, and deny the access. In case of power failure or an emergency, the pedestrian swing barrier gate will relase their swings for free access.

Swing arm optical turnstile types
According to the difference of drive motor, swing arm optical turnstiles are divided into
Brush motor swing arm optical turnstile: uses DC24V brush motor, featuring cost saving, simple structure. relatively simple in speed control.
Brushless motor swing arm optical turnstile: uses DC24V brushless motor, featuring no mechanical friction, low running noise, long life span, higher rotation speed, higher power conversion efficiency, and more energy saving than brush motor swing turnstile gate barrier
The cost & price of brushless motor swing arm optical turnstile is higher than brush motor swing arm optical turnstile.

What are the advantages of swing arm optical turnstile?
1. Swing arm optical turnstile is supplied with multiple physical barrier height and lane widths providing easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements.
2. Swing gate turnstile barrier provides fast throughput to achieve fast, effective and covinient crowd control management
3. Swing turnstile gate comes with small footprint, well suits with compact areas
4. Waist optical swing turnstile is supplied with sleek and modern designs blending into surrounding aesthetics
5. Touchless swing turnstile gate guides the pedestrians by switches, light information, and combined obstacles to ensure only one passenger can pass at a time.

Swing arm optical turnstile applications
Swing arm optical turnstile provides fast throught and comes with sleek design, which enable them to be used for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.
