Pasco - Model 150LB -Swing Cast Steel Check Valve
FromPasco

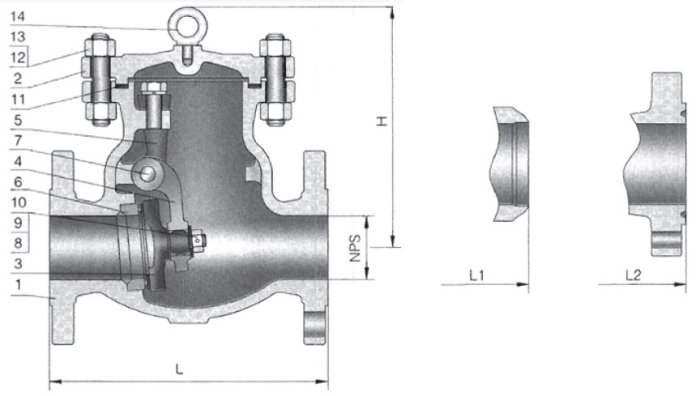

Design description: BB. bolted bonnet cap, swing type. anti-rotation disc, renewable seat rings, non-penetrate disc shaft, Horizontal or vertical service, flanged or buttwelding ends.
Most popular related searches
- Steel Check Valves, API 60
- Steel Check Valves, ISO 14313
- Steel Valves, ASME B1634
- Face to Face, ASME B16.10
- End Flanges, ASME B16.5
- Buttwelding Ends, ASME B16.25
- Inspection and Test. API 598/API 6D
Fig. No:
C1F01A C1F05D C1F01B
C1B01A C1B05D C1B01B
