Bell - Model DIN F6 -Swing Check Valve with Counter Weight
Flanged swing check valve with counterweight material: body/cover/disc: cf8m arm/counterweight: 316 pin: ss420 body seat: 316 sealing/gaskets: PTFE.
Most popular related searches
swing check valve
check valve
flanged swing check valve
stainless steel check valve
non-return valve
flanged check valve
cast steel swing check valve
gasket sealing
gaskets
hydraulic cylinder
- DIN F6 swing check valve
- SWING CHECK VALVE WITH COUNTERWEIGHT
- STAINLESS STEEL CHECK VALVE
- NON Return valve with counter weight
FLANGED SWING CHECK VALVE WITH COUNTERWEIGHT
- DESIGN STD: DIN3356, DIN3202 F6;
- MATERIAL:CF8M(316L),1.4308,1.4401;
- Face to face: EN558-1/line 48 (DIN 3202 F6);
- Mounted lever + counterweight outside shaft
- Check valves with large sizes mounted with hydraulic damping cylinder
- Test and inspection: EN12266-1.
MATERIAL:
- BODY/COVER/DISC: CF8M
- ARM/COUNTERWEIGHT: 316
- PIN: SS420
- BODY SEAT: 316
- SEALING/GASKETS: PTFE
- BOLTS/NUTS: SS

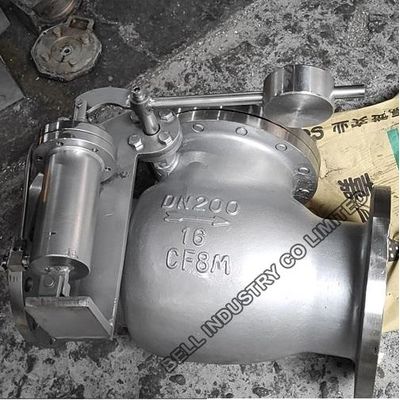

Name: swing type check valve with lever + counterweight.
- Design: DIN 3356.
- Body: 1.4308.
- Nominal size: DN200.
- Nominal class: PN16.
- Connection ends: RF Flanged ends.
