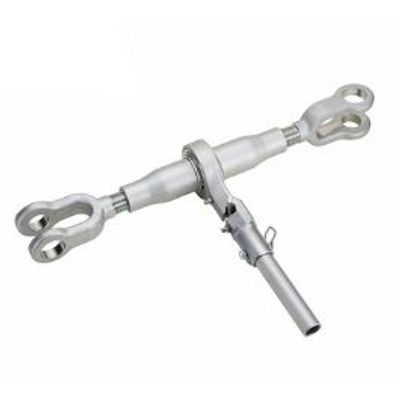

Swintool - Jaw Ratchet Turnbuckle
Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China Q235A, Q345B steel. Stainless steel is Grade A4 l as in DIN EN ISO 3506-2, in China 304, 316 or 316L stainless steel..
Screw threads of turnbuckle:
The threads of turnbuckles shall be metric coarse pitch threads as in DIN ISO 965-2, produced to tolerance 6H.
Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
Surface finish of turnbuckle:
DIN EN ISO 4042 shall apply with regard to electroplating.
DIN EN ISO 10684 shall apply with regard to hot dip galvanizing.
For turnbuckles made of stainless steel, passivation in accordance with DIN EN ISO 16048 is required.
Turnbuckle Connection components:
Welding stud as per DIN 34828.
Customized forged clevis fork links, eye blot, hooks, rod end etc.
Turnbuckle Assembly
Turnbuckle shall be assembled with welding studs, jaw/jaw, eye/eye,hook/hook. Jaw/eye, jaw/hook, eye/hook etc.
- Ratchet turnbuckles for lifting
- Eye to eye ratchet turnbuckle
- Clevis jaw ratchet turnbuckle
- Ratchet turnbuckle Jaw jaw
- Baler ratchet turnbuckle
- Ratchet load binder with clevis
- Industries ratchet binder
- Small ratchet turnbuckle
- Heavy duty ratchet turnbuckle
- Compactor ratchet turnbuckle
- Tractor ratcheting turnbuckle
- Jaw jaw ratchet turnbuckle
