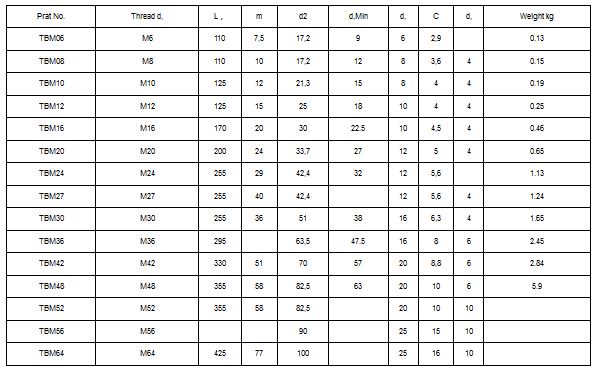

Swintool - Model DIN - 1478 -Turnbuckle Frame Body
DIN 1478:2005 turnbuckle closed body type: Technical info of Turnbuckles made from steel tubes: Material of closed body turnbuckle: Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China
Q235A,Q345B steel. Stainless steel is Grade A4 I as in DIN EN ISO 3506-2, in China 304,316 or 316L stainless steel..
Most popular related searches
Screw threads of turnbuckle:
- The threads of turnbuckles shall be metric coarse pitch threads as in DIN IS0 965-2,
- produced to tolerance 6H.
- Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
Surface finish of turnbuckle:
- DIN EN ISO 4042 shall apply with regard to electroplating.
- DIN EN ISO 10684 shall apply with regard to hot dip galvanizing.
- For turnbuckles made of stainless steel, passivation in accordance with DIN EN ISO
- 16048 is required.
Turnbuckle Connection components:
- Welding stud as per DIN 34828.
- Customized forged clevis fork links, eye blot, hooks, rod end etc.
- Turnbuckle Assembly
- Turnbuckle shall be assembled with welding studs, jaw/jaw, eye/eye, hook/hook.
- Jaw/eye, jaw/hook, eye/hook etc..
