Zhichuan Technology (Shanghai) Co., Ltd.
Zhichuan - Model ZCT215L2-SQS-A1G-4007 -Switch with Alarm for Tower Crane and Aerial Lifts
ZCT215L2-SQS-A1G-4007 is a new generation cost-effective dual axis tilt switch researched and developed by ZC Technology. This product is based on the 32-bit high-performance microprocessor, which is calibrated to the zero deviation and sensitivity deviation of the sensor to ensure the reliability and consistency. The sensor comes with its own blister, by looking at the water bubble position and setting the zero button, so as to meet the requirements of the site and be convenient to the user.
Most popular related searches
tower crane
aerial work platform
aerial monitor
aerial monitoring
crane monitoring
level monitoring
level monitoring system
automatic monitoring

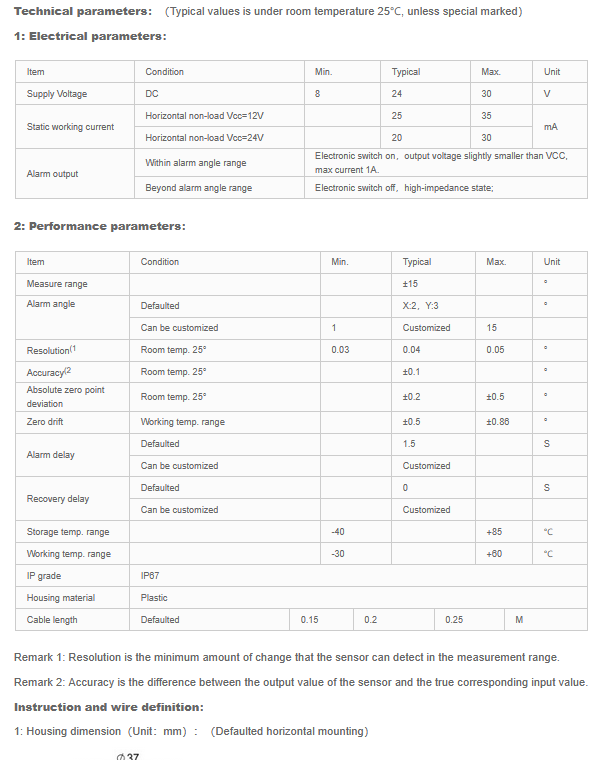

- Product Model: ZCT215L2-SQS-A1G-4007
- Measuring Range: ±15 °
- Output: Switch
- Power:Voltage(8~30V)
- Measuring Axis: Dual Axis
- Accuracy: 0.1 °-0.5°
- Resolution: 0.04°
- Application: Machinery
- IP Degree: IP67
- Built-in 32-bit microprocessor, faster operation speed.
- Non-contact sensitive components, longer life.
- Tower crane tilt monitoring
- Electric wheelchair automatic leveling tilt monitoring
- Aerial work platform tilt monitoring
