Envirobot

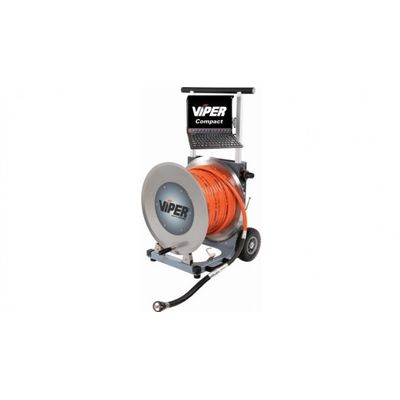

Viper - Model Compact -Switchable Forward Jetting Nozzle
FromEnvirobot
FEATURES: With 200 ft (60 m) hybrid hose (3/8"). Optionally with 165 ft (50 m) hybrid hose (1/2"). W x D x H: 23 x 20 x 28 inch (58 x 52 x 70 cm) (handle retracted). W x D x H: 23 x 20 x 43 inch (58 x 52 x 110 cm) (handle extended). Weight 139 lbs (63 Kg) incl. 265 ft (80m) hybrid hose 3/8“.
Most popular related searches
- compact, ergonomic hose trolley with 200 ft (60 m) hybrid hose 3/8"
- available with comfortable automatic hose winding „automatic“
- tools always ready to hand in a convenient tool box
- dimension handle retracted: W x D x H: 23 x 20 x 28 inch (58 x 52 x 70 cm)
- dimension handle extended: W x D x H: 23 x 20 x 43 inch (58 x 52 x 110 cm)
- weight 119 lbs (53 kg) incl. 200 ft (60 m) hybrid hose 3/8"
- Camera cable integrated in the jacket of the HP-hose for optimal handling and protection against damage
- Pipe Sizes 3“ – 16“ (DN 75 – DN 400)
- Passes through and steers into multiple 45 deg bends in lines 3” (DN 80) and larger
- Passes through and steers into multiple 90 deg bends in lines 4” (DN 100) and larger
- HP hose length up to more than 330 ft (100 m) working pressure up to 4350psi (300 BAR)
- Hose diameter 3/8“ or ½“
- Required water supply 1600 psi (110 BAR) 8 gpm (30 l/min)
- Fresh water and recycled water operation
- Full HD live camera 1080 x 1920 with digital zoom
- 160° wide-angle lens with 4mm (0.16") sapphire glas
- dimmable power-LED´s for pipes up to DN 400mm (16")
- Sensor for inclination and direction indication
- locator Sonde 512 Hz / 640 Hz
- integrated forward jetting nozzle with exchangeable nozzle
- depth rating 100m (330 ft) with internal pressure monitoring
- stainless steel body with impact protection
- detachable from the Flex Segment thanks to the modular design
- diameter 40mm (1.6") - length 40mm (1.6")
- spacer for pipes larger 3" (DN 80)
