North Houston Machine, Inc. (NHM)
NHM - Swivel for Small Drilling Rigs
2J-NHM is made for use on light hydraulic rigs and shot holes in jungles and swamps. Household water wells, and any small drilling rigs.
Most popular related searches
small drilling rig
drilling rig
domestic water well
hydraulic rig
water well
domestic water
mounted bearing
water well drilling rig
domestic water well drilling
water drilling rig

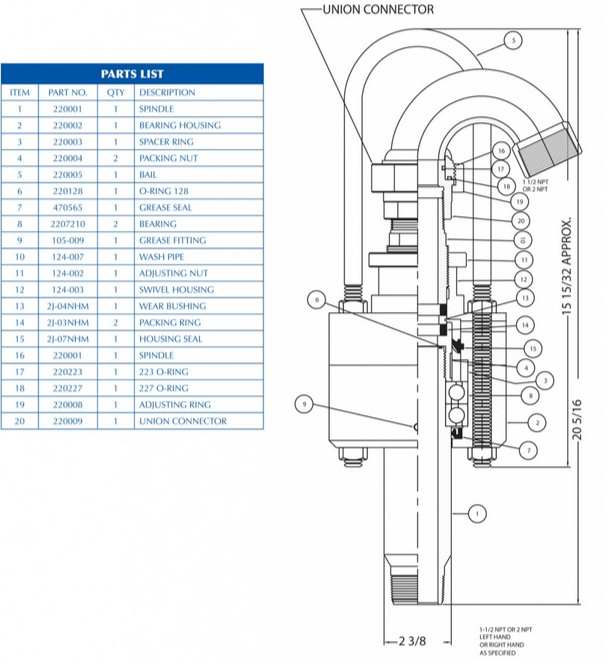

The 2J-NHM swivel uses duplex mounted, angular contact bearings mounted back to back. The bearings are grease lubricated from the bottom of the swivel and pumped up through the upper seals.
Bearings are rated at 5,870 LBS. at 100 R.P.M. for 3,000 hours full load.
Recommended Working Pressure: 425 PSI
