Gejos - Swivel Head Accessories

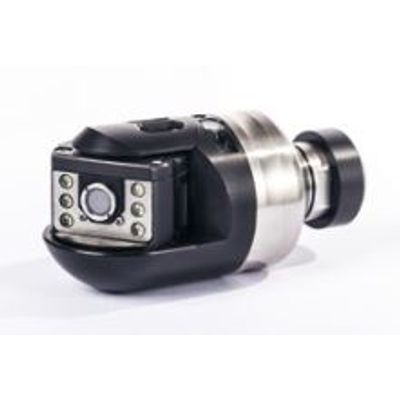

Deflection swivel head camera PIC 6.0 PELI – from DN 70 to- DN 500 (optional).

Most popular related searches

Fully tillable camera head mode of stainless steel and aluminium 0 60 mm
Infinite rotation / infinite tilting
Automatic zerFunction
Automatic 3608 rotation (unction
Instant, fully automatic real-time laser nominal diameter measurement (output in mm)
Pressure-resistant up t1 bar
Bend-capable at DN 100/87° and higher
Can be plugged on the push rod due tconnection For various camera heads
Pressure control - pressure valve
Rotation and tilting position indicator in degrees
Pipe inclination measurement in degrees
Shutter/aperture mode settable via the control unit
70 m Fibreglass rod 0 9 mm with integrated camera cable
Digital module 0.1 lux
Adjustable reel wheels For easy transport
Accessory bag on the reel- Vertically adjustable handle For transportation and attachment oF the control case with 360° rotation Function
Detachable control unit in a rugged Pelicase
10" Sunreflect Monitor
Keypad, optionally with external wireless keyboard
Videoutput- Infinitely variable lighting control
220 V / 50 Hz mains connection- High-capacity LFP battery- Viderecording and image storage, 2x USB connection
128 Ginternal hard disk storage (extendable)
Wi-Fi data transfer
Update via Wi-Fi
Data recording with location (in meter) overlay
Pre-installed 3D pipe routing soFtware with GPS position indicator (optional, unlockable any time)

Technical Data
