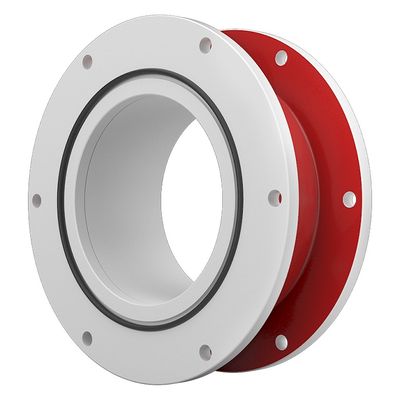

Battioni Pagani - Swivel Joints
WORKING CONDITIONS: PRESSURE = 6 bar (90 psi), TEMPERATURE = -15°C / + 80°C, HIGH RESISTANCE SPHEROIDAL CAST-IRON, SUPPLIED WITH 2 O-RINGS FOR COUPLING, SEALING SECURED BY 3 O-RINGS, EASY GREASING, ROTATION OF 360°.
Most popular related searches
| CODE | Ø | N. Holes | Kg | Article |
| 5100100001 | 100 | 6 | 16,4 | 2001/D |
| 5100100002 | 150 | 6 | 21,5 | 2001/G |
| 5100100003 | 200 | 6 | 28,7 | 2001/H |
| 5100100004 | 250 | 8 | 36,0 | 2001/I |
| 5100100005 | 300 | 12 | 45,6 | 2001/L |
| 5100100006 | 500 | 20 | 70 | 2001/M |
